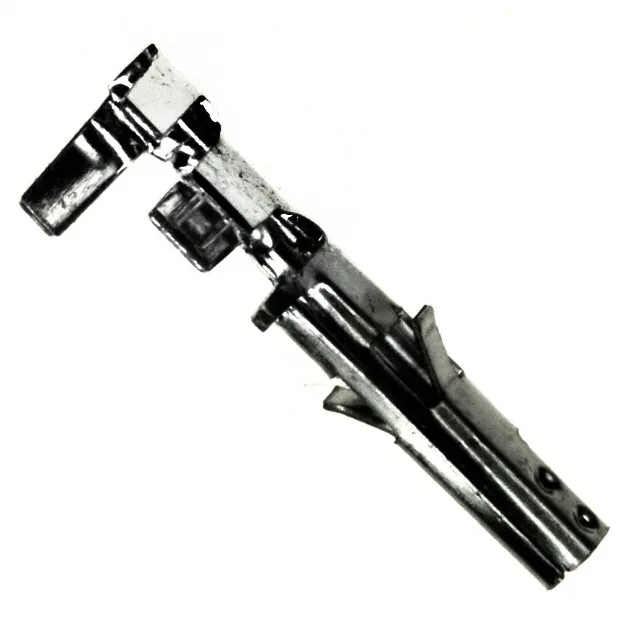

TE Connectivity AMP Connectors VAL-U-LOK stamped socket, order code 1586315-4, 18-22 AWG, gold 30.0µin (0.76µm) contact finish, crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Type | Stamped |
| Series | VAL-U-LOK |
| Wire gauge | 18-22 AWG |
| Package | Bulk |
| Pin or socket | Socket |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 1586315-4 is a stamped socket in TE Connectivity's VAL-U-LOK series, terminated by crimp and accepting 18-22 AWG wire.
The 1-1326032-0 is a tin-plated VAL-U-LOK socket for 16 AWG wire, while the 1586315-4 carries gold plating at 30.0µin (0.76µm) and accepts 18-22 AWG — the gold finish drives higher mating cycle life and corrosion resistance.
No — the 1-1326032-0 accepts 16 AWG wire with tin plating, while the 1586315-4 accepts 18-22 AWG with gold plating. The wire gauge range differs, so a direct drop-in without rewiring is not supported.
The 1586315-4 is ROHS3 compliant per TE Connectivity's lifecycle record.
