TE Connectivity AMP Connectors 160013

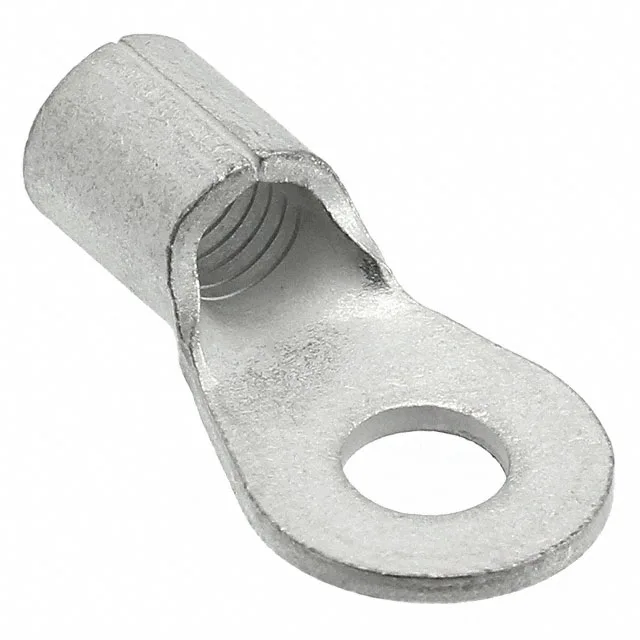

TE Connectivity Solistrand 160013 Ring Terminal, 8 AWG

MPN 160013
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 160013, 8 AWG, M5 stud, circular, tin-plated copper, non-insulated, brazed seam, serrated termination, crimp, free hanging.

$1.4700 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

160013 specifications
ParameterValue
SeriesSolistrand
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge8 AWG
Contact materialCopper
Width - outer edges0.469\" (11.91mm)
PackageBulk
FeaturesBrazed Seam, Serrated Termination
Thickness0.048\" (1.22mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)M5 Stud
Contact finishTin
Length - overall0.933\" (23.70mm)

Product details

8 AWG ring terminal, M5 stud

The 160013 is the 8 AWG member of TE Connectivity's Solistrand ring terminal line, accepting an M5 stud and terminating via crimp for free-hanging (in-line) installation. Tin-plated copper construction with a brazed seam and serrated termination; the 0.048" (1.22 mm) barrel thickness supports the 8 AWG wire range.

Solistrand series: thickness and wire gauge contrast

Within the Solistrand series the 160013's 0.048" (1.22 mm) barrel thickness and 8 AWG capacity differ from the 0.031" (0.79 mm) thickness and 14-16 AWG range of the 1377172-9 (1/4 stud) and 1377172-7 (8 stud) — select the barrel thickness to match the wire gauge; the brazed seam and serrated termination are shared across the series.

MPN
160013
