TE Connectivity AMP Connectors 160134-5 — Ring Terminals

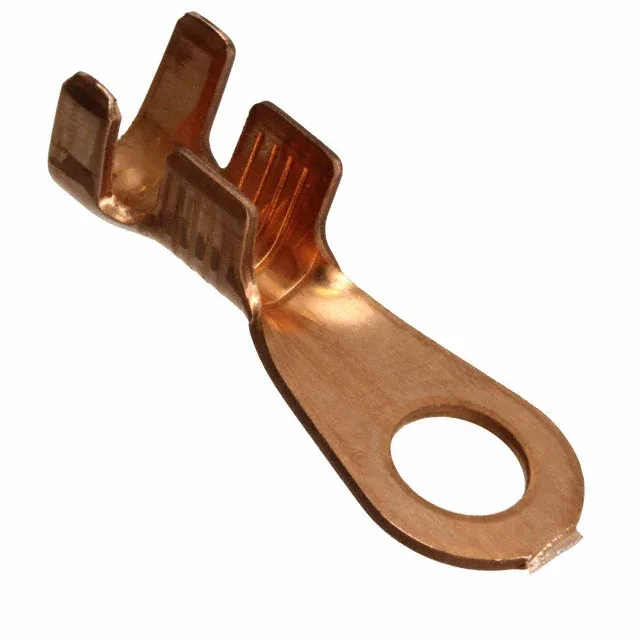

160134-5 TE Ring Terminal, M5 Stud, 10-12 AWG, Non-Insulated

MPN160134-5
Active

TE Connectivity AMP Connectors Solistrand ring terminal, order code 160134-5, circular, M5 stud, 10-12 AWG, 0.030" (0.76mm) thick, non-insulated, phosphor bronze, crimp termination, free hanging.

$0.4800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 160134-5 datasheet (PDF)
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

160134-5 specifications
ParameterValue
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
Contact materialPhosphor Bronze
Width - outer edges0.354\" (9.00mm)
PackageTape & Reel (TR) Cut Tape (CT)
Thickness0.030\" (0.76mm)
InsulationNon-Insulated
TerminationCrimp
Stud (Tab size)M5 Stud
Length - overall0.945\" (24.00mm)
Insulation diameter0.150\" ~ 0.209\" (3.81mm ~ 5.31mm)

Product details

M5 stud ring for 10-12 AWG power circuits

The 160134-5 is the M5-stud member of TE's Solistrand non-insulated ring terminal line, crimped onto 10-12 AWG wire. Phosphor bronze contact, 0.030" (0.76mm) thick, with a 0.945" (24.00mm) overall length and 0.354" (9.00mm) outer edge width. Free-hanging crimp termination with no insulation sleeve.

Stud size and wire gauge across the Solistrand family

The 160134-5's M5 stud (0.354" outer width) and 10-12 AWG wire range differ from the 133521-1 (8 stud, 18-22 AWG, 0.281" width) and the 1377172-7 (8 stud, 14-16 AWG, 0.343" width). The 1377172-9 uses a 1/4 stud with 0.469" width for 14-16 AWG. All share free-hanging crimp termination and non-insulated construction.

Active production and RoHS compliance

ROHS3 compliant per TE Connectivity documentation.

Frequently asked questions

Will 160134-5 drop into a panel that was specified around 133521-1 without rewiring?

No. 160134-5 uses an M5 stud (0.354" outer width) and accepts 10-12 AWG wire. 133521-1 uses an 8 stud (0.281" width) and accepts 18-22 AWG. The stud size and wire range differ, so the panel hole and wire gauge would need to change.
