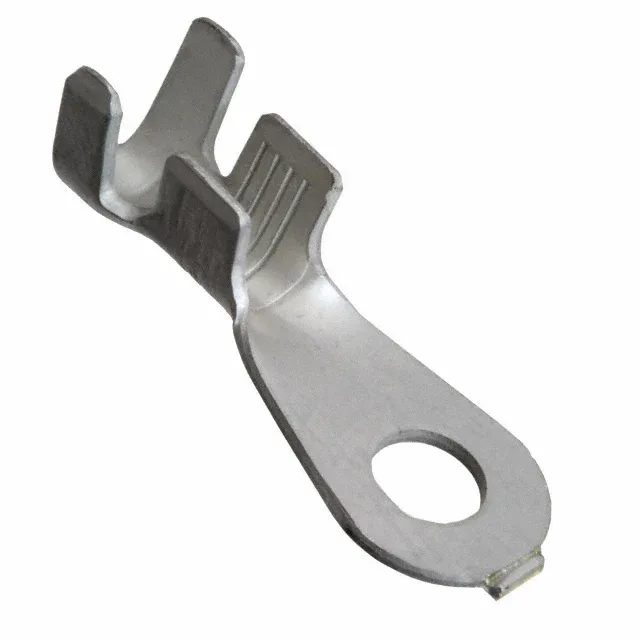

TE Connectivity AMP Connectors ring terminal, order code 160163-2, circular, M4 stud, 10-12 AWG, non-insulated, tin-plated brass, 0.030" (0.76mm) thickness, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Contact material | Brass |
| Width - outer edges | 0.354\" (9.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Thickness | 0.030\" (0.76mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | M4 Stud |
| Contact finish | Tin |
| Length - overall | 0.945\" (24.00mm) |
| Insulation diameter | 0.150\" ~ 0.209\" (3.81mm ~ 5.31mm) |
The 160163-2 is a non-insulated circular ring terminal from TE Connectivity AMP Connectors, designed for 10-12 AWG wire and an M4 stud. The terminal is made from tin-plated brass with a 0.030" (0.76mm) thickness, a 0.354" (9.00mm) outer edge width, and an overall length of 0.945" (24.00mm).
The 160163-2 is available in Tape & Reel (TR) or Cut Tape (CT) packaging.
The 160163-2 is ROHS3 compliant.
