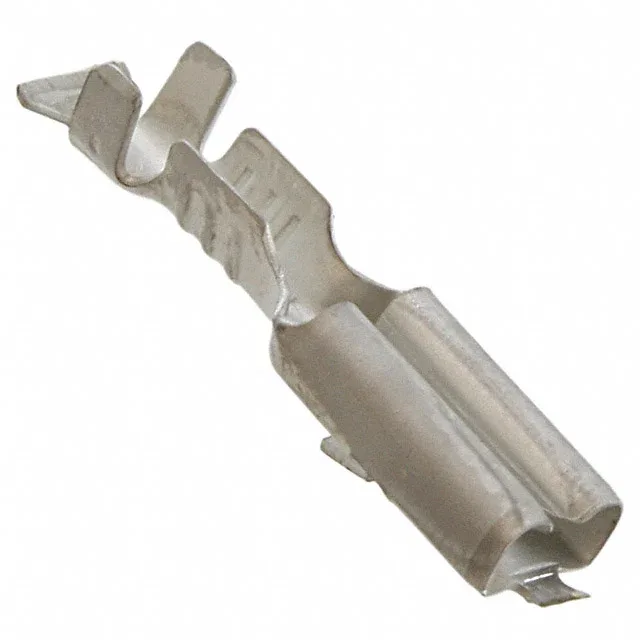

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 160173-2, female, 0.110" (2.79mm) tab width, 20-22 AWG, tin-plated brass, non-insulated, crimp termination, free hanging (in-line).
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 20-22 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.217\" (5.50mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Insulation diameter | 0.050\" ~ 0.080\" (1.27mm ~ 2.03mm) |
The 160173-2 is a non-insulated female quick-disconnect terminal from the TE Fastin-Faston series, accepting 20-22 AWG wire with a 0.110" (2.79mm) tab width. Crimp termination and tin-plated brass contacts suit free-hanging in-line installation; the insulation diameter range is 0.050" to 0.080" (1.27mm to 2.03mm).
