TE Connectivity AMP Connectors 160300 — Ring Terminals

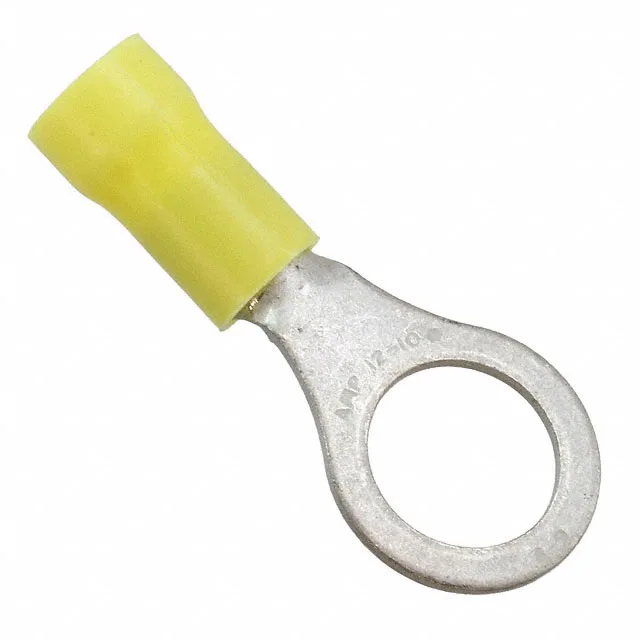

160300 Plasti-Grip Ring Terminal, 10-12 AWG, M10 Stud

MPN160300
Active

Plasti-Grip ring terminal, order code 160300, 10-12 AWG, M10 stud, circular, yellow PVC insulation, tin-plated copper contact, serrated termination, crimp, free hanging.

$0.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPlasti-Grip
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

160300 specifications
ParameterValue
SeriesPlasti-Grip
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
ColorYellow
Contact materialCopper
Width - outer edges0.594\" (15.09mm)
PackageBulk
FeaturesSerrated Termination
Thickness0.039\" (0.99mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)M10 Stud
Contact finishTin
Length - overall1.433\" (36.40mm)
Insulation diameter0.150\" ~ 0.248\" (3.81mm ~ 6.30mm)

Product details

Ring terminal for 10-12 AWG, M10 stud

The 160300 is a yellow Plasti-Grip ring terminal for 10-12 AWG wire terminated to an M10 stud. Tin-plated copper contact with serrated termination, rated for free-hanging crimp installation.

Stud size comparison within the series

Within the Plasti-Grip 10-12 AWG line, the 160300's M10 stud sits between the M5 stud of the 160292 and the 5/16" stud of the 160296 — the wire range, insulation diameter, and contact finish are shared across the series, so match the stud size to the bolt.

Frequently asked questions

Will the 160300 drop into a panel specified for the 160296?

No — the 160300 uses an M10 stud, while the 160296 uses a 5/16" stud. The overall length and outer width also differ; verify the bolt size and clearance before ordering.
