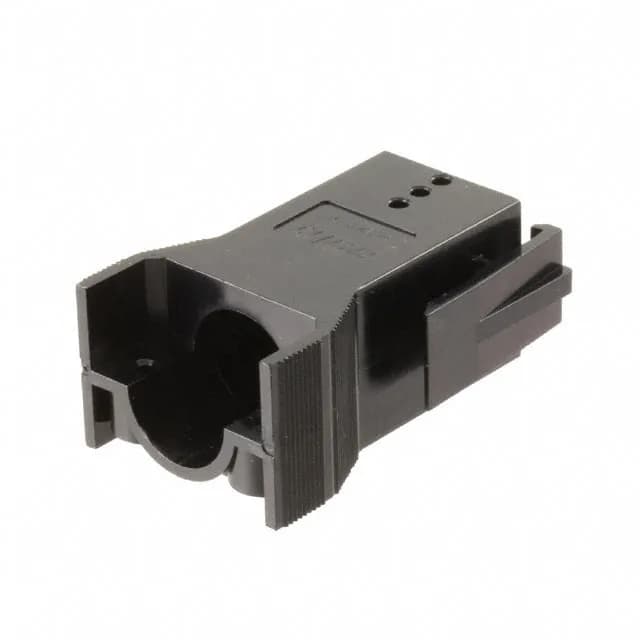

The TE Connectivity 1604083-1 is a plug frame accessory — a black polycarbonate (PC) frame designed for the Power Series 15/30/45 connector family. It is not a connector itself but a protective or organizing frame that fits over the plug housing, used in power distribution and industrial control panels where the Power Series connectors carry up to 15, 30, or 45 A per circuit. The black PC housing provides basic mechanical protection and cable management at the plug face.
What connectors does the 1604083-1 plug frame fit?
This plug frame is specified for use with TE Connectivity's Power Series 15/30/45 connectors. That series includes rectangular power connectors rated for 15 A, 30 A, and 45 A per circuit, commonly used in AC/DC power supplies, battery chargers, and industrial equipment. The frame slides over the plug housing to provide strain relief and cable retention; it mates with the corresponding receptacle frame of the same series. Confirm that your plug housing is from the Power Series 15/30/45 family — the frame will not fit other connector series.
