TE Connectivity AMP Connectors 160450-2 — Quick-Disconnect Terminals

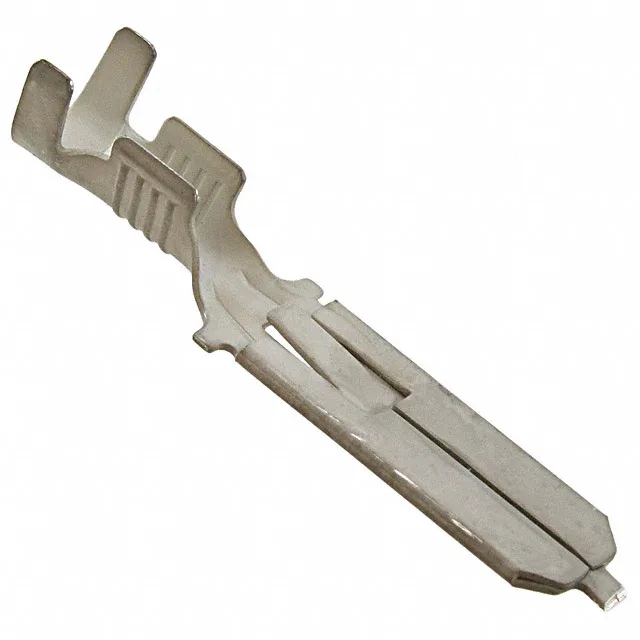

160450-2 TE Connectivity Fastin-Faston Tab, 0.250"

MPN160450-2
Active

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect tab, order code 160450-2, male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated phosphor bronze, 14-18 AWG, crimp termination, free hanging.

$0.3600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

160450-2 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge14-18 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderMale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall1.181\" (30.00mm)
Insulation diameter0.118\" ~ 0.157\" (3.00mm ~ 3.99mm)

Product details

Tab geometry and wire range

The 160450-2 is a 0.250" (6.35mm) wide male tab from the TE Fastin-Faston series, accepting 14-18 AWG wire via a crimp termination. The tab thickness is 0.032" (0.81mm) and the overall length measures 1.181" (30.00mm). Contact is tin-plated phosphor bronze, with a serrated termination feature for improved wire grip. The insulation diameter range is 0.118" to 0.157" (3.00mm to 3.99mm).

Sibling tabs in the series

Within the Fastin-Faston 0.250" tab family, the 160450-2 (overall length 1.181") is joined by the 160457-2 (1.102") and the bulk-packaged 160451-2 (1.106") — all share the same tab width, thickness, wire gauge range, and tin plating. The 160457-3 matches the 160457-2 dimensions but uses silver contact finish.

Frequently asked questions

Will 160450-2 drop into a panel specified around 160457-2 without rewiring?

The 160450-2 and 160457-2 share the same 0.250" tab width, 0.032" tab thickness, wire gauge range (14-18 AWG), and tin-plated phosphor bronze contact. The overall length differs by 0.079" (2.01mm) — the 160450-2 is longer — so mechanical fit in a confined cavity should be verified against the available clearance.

What compliance documentation does TE Connectivity AMP Connectors provide for 160450-2?

The 160450-2 is RoHS3 compliant. No UL or IEC certification is listed in the available records.
