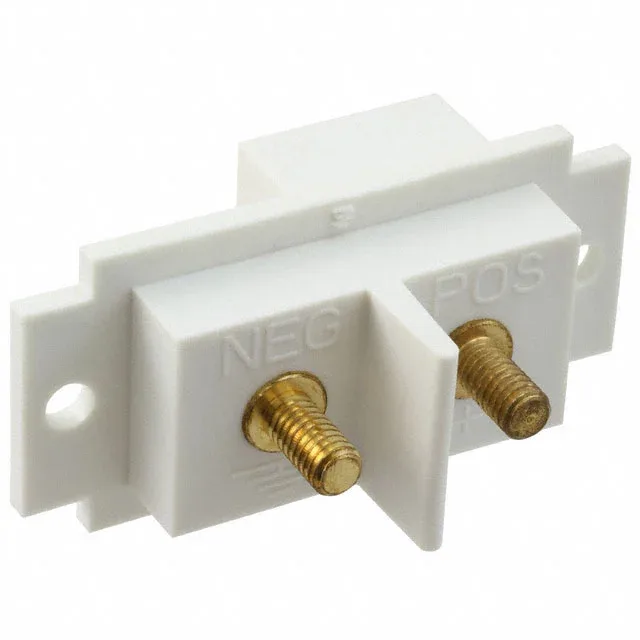

1604797-1 — TE Connectivity AMP Connectors product photo

1604797-1 TE Buchanan Battery Stud Terminal Block, 2 Pos

Name: 1604797-1
Brand: TE Connectivity AMP Connectors
SKU: 1604797-1
Availability: LimitedAvailability
Author: Obsolete-Hunter Olga

MPN1604797-1

Active

TE Connectivity Buchanan series, Battery Stud terminal block, 1604797-1, 2 positions, 94.0mm terminal width, Panel Mount, Stud termination, UL94 V-0, -40°C to 130°C, White housing.

$14.4200Ref. price · indicative, final on quote

RFQ

StockContact for availability

MOQ1 pcs

New & original stockTraceable channels only — no mixed lots, no re-taped reels.
Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
Photo-verified countsEvery line counted and photographed before the box closes.
PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1604797-1 Technical Specifications
Parameter	Value
Type	Battery Stud
Series	Buchanan
Mounting type	Panel Mount
Terminal - width	94.0mm
Operating temperature	-40°C ~ 130°C
Housing color	White
Material - insulation	Polybutylene Terephthalate (PBT)
Material flammability rating	UL94 V-0
Package	Bulk
Features	Positions Stamped
Number of levels	1
Termination style	Stud
Positions	2

Product details

What It Is: TE Buchanan 1604797-1 Battery Stud Terminal Block

It is a panel-mount, single-level block designed for high-current battery and power distribution connections, using a stud termination style.

The terminal width of 94.0mm sets the panel cutout and the spacing between the two studs — this is the dimension to match against your battery post or busbar layout. With 2 positions, this block handles a single positive/negative cable pair. The stud termination accepts ring terminals or direct cable lugs; the panel mount keeps the block fixed in the enclosure.

Frequently asked questions

Where can I buy 1604797-1 and get a price?

The 1604797-1 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for your BOM quantity.
