TE Connectivity AMP Connectors 160625-2 — Quick-Disconnect Terminals

TE Faston 160625-2 Quick-Disconnect Terminal, 17-20 AWG

MPN160625-2
Active

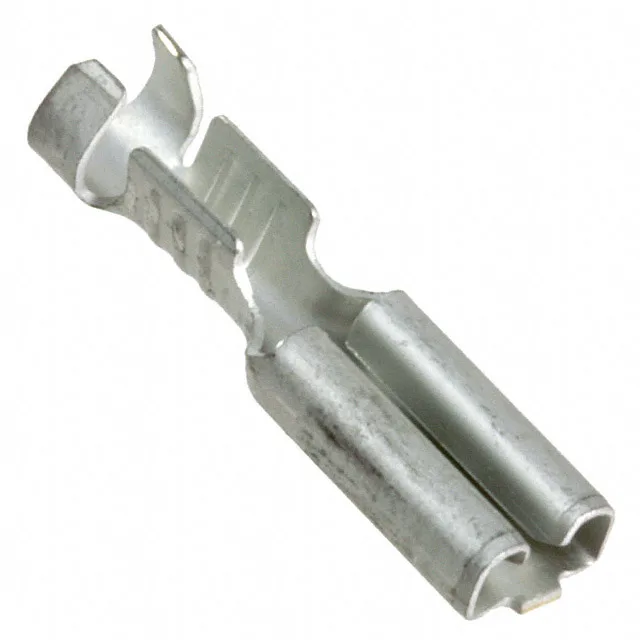

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 160625-2, female, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, 17-20 AWG, tin-plated brass, non-insulated, crimp termination, free hanging, bulk packaging.

$0.6000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 160625-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

160625-2 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge17-20 AWG
Tab width0.110\" (2.79mm)
Contact materialBrass
GenderFemale
PackageBulk
InsulationNon-Insulated
Tab length0.248\" (6.30mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Contact finishTin
Length - overall0.551\" (14.00mm)
Insulation diameter0.080\" ~ 0.120\" (2.03mm ~ 3.05mm)

Product details

0.110" tab, 17-20 AWG, tin-plated brass

The 160625-2 is a non-insulated female quick-disconnect terminal in TE's Faston series, accepting 17-20 AWG wire with a 0.110" (2.79mm) tab width and 0.020" (0.51mm) tab thickness. Tin-plated brass contact finish suits moderate-mating-cycle applications where corrosion resistance is not the primary concern.

Tab-width neighbours in the Faston family

The 160625-2's 0.110" tab width is narrower than the 0.250" (6.35mm) of the Utilux-series 1-1627194-4 and the 0.248" (6.30mm) of the 1-1659250-0 — the tab width and wire gauge together determine which mating tab and crimp tool the line needs.

Frequently asked questions

What compliance documentation does TE provide for the 160625-2?

The 160625-2 is ROHS3 Compliant per TE's lifecycle record.
