Crimp termination, 0.110" tab

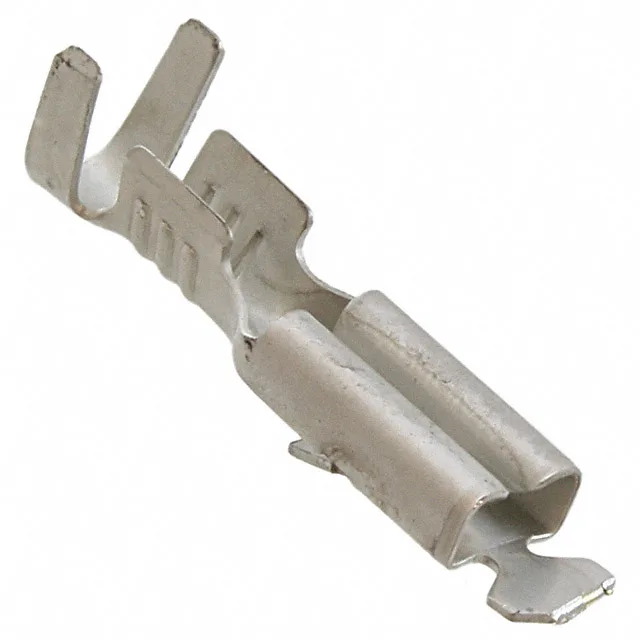

The 160655-6 is a female quick-disconnect receptacle from TE's Fastin-Faston series, accepting 15.5-20 AWG wire with a crimp termination. The tab measures 0.110" (2.79mm) wide by 0.032" (0.81mm) thick, and the contact is tin-plated brass — the tin surface suits moderate-cycle applications where the mating half is also tin-plated.
Tab fit and wire range
The 0.110" tab width and 0.032" thickness match the standard Fastin-Faston male tab; the 0.248" (6.30mm) tab engagement length provides the contact wipe needed for a reliable crimp joint. Wire range covers 15.5-20 AWG, and the insulation diameter acceptance is 0.079" ~ 0.118" (2.00mm ~ 3.00mm) — the crimp barrel closes onto the conductor, not the insulation jacket.
