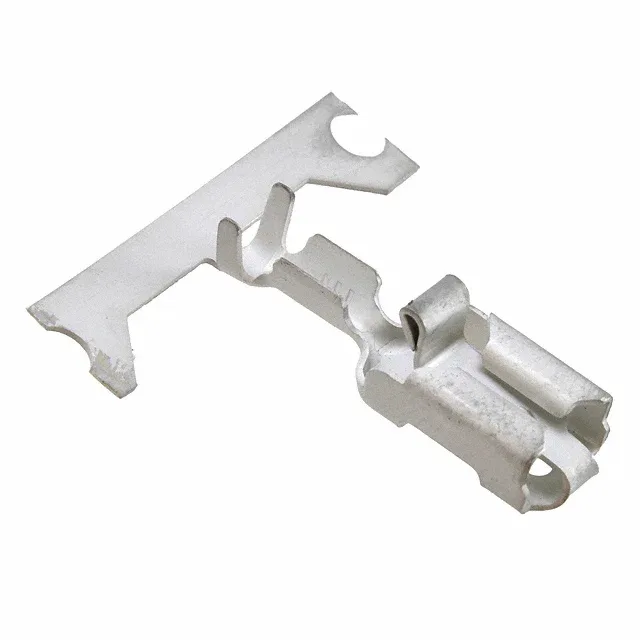

TE Connectivity AMP Connectors Mark I quick-disconnect receptacle, order code 160759-3, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 16-20 AWG, tin-plated brass, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Mark I |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.878\" (22.30mm) |
| Insulation diameter | 0.091\" ~ 0.130\" (2.31mm ~ 3.30mm) |
The 160759-3 is the female receptacle in TE's Mark I quick-disconnect terminal series, accepting a 0.250" (6.35mm) wide tab with 0.032" (0.81mm) thickness. It crimps onto 16-20 AWG wire and terminates free-hanging — no housing or secondary lock is integral to the terminal itself.
TE Connectivity AMP Connectors lists the 160759-3 as ROHS3 Compliant — no UL or IEC certification is cited in the product record.
