TE Connectivity AMP Connectors 160773-7 — Quick-Disconnect Terminals

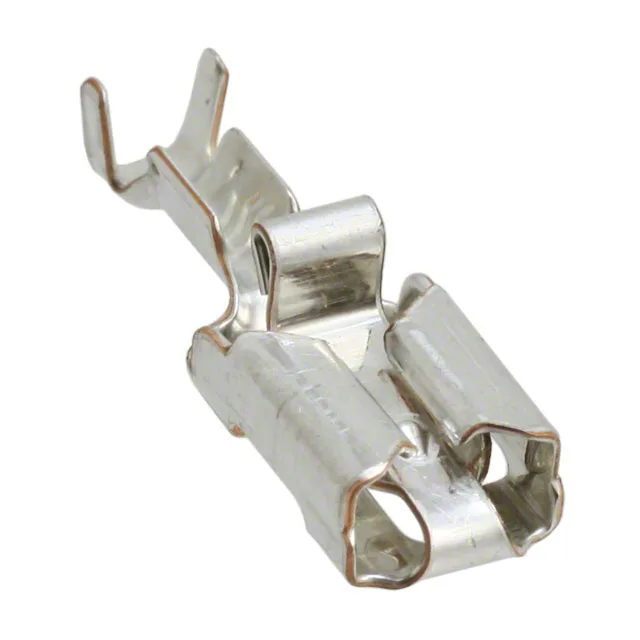

160773-7 TE Connectivity AMP Quick-Disconnect Terminal

MPN160773-7
Active

TE Connectivity AMP Connectors Mark I quick-disconnect terminal, order code 160773-7, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 15.5-20 AWG, tin-plated phosphor bronze, non-insulated, crimp termination, bulk package.

$0.6000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 160773-7 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMark I
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

160773-7 specifications
ParameterValue
SeriesMark I
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge15.5-20 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderFemale
PackageBulk
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.902\" (22.91mm)
Insulation diameter0.091\" ~ 0.130\" (2.31mm ~ 3.30mm)

Product details

Female quick-disconnect for 0.250" tabs

The 160773-7 is the female member of TE's Mark I quick-disconnect terminal line, accepting a 0.250" (6.35mm) tab with a 0.032" (0.81mm) thickness. The tin-plated phosphor bronze contact handles 15.5-20 AWG wire via a crimp termination and hangs free in-line without insulation.

Same-series sibling selection

Within the Mark I 160773 base number, the 160773-7 uses a phosphor bronze contact, while siblings 160773-3 and 160773-6 use brass — the tab dimensions, wire range, and tin plating are identical across all three.

Frequently asked questions

What is the gender of 160773-7?

The 160773-7 is a female quick-disconnect terminal designed to mate with a 0.250" (6.35mm) male tab.

Will 160773-7 drop into a panel specified for 160773-4?

The 160773-7 and 160773-4 share the same tab width, tab thickness, wire gauge range, and overall length — the only difference is contact material (phosphor bronze vs brass). The terminal fits the same mating tab and crimp tooling.

What compliance documentation does TE provide for 160773-7?

The 160773-7 is ROHS3 compliant. No UL or IEC certification is listed in the available product records.
