TE Connectivity AMP Connectors 160859-1 — Quick-Disconnect Terminals

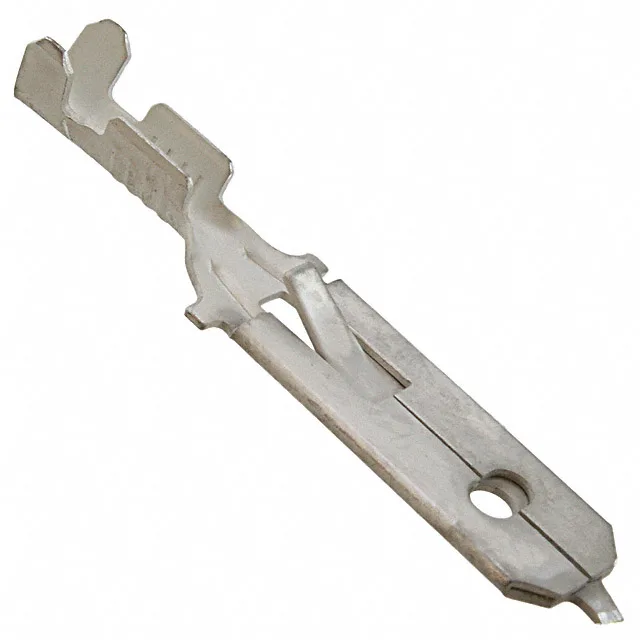

TE 160859-1 Fastin-Faston Tab Terminal, 0.250"

MPN160859-1
Active

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 160859-1, male tab, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 17-20 AWG, non-insulated, brass contact, crimp termination, free hanging.

$0.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

160859-1 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge17-20 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderMale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.620\" (15.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall1.102\" (27.99mm)
Insulation diameter0.055\" ~ 0.091\" (1.40mm ~ 2.31mm)

Product details

Tab terminal for 17-20 AWG circuits

The 160859-1 is a male tab terminal in TE Connectivity's Fastin-Faston series, designed for 17-20 AWG wire with a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness. The brass contact is non-insulated, terminates by crimp, and mounts free-hanging for in-line wire splicing or mating with a Fastin-Faston receptacle.

Same-series tab width, different wire range

The 160859-1 shares the 0.250" tab width with the 927899-2 but accepts 17-20 AWG wire versus the 18-22 AWG range of the 927899-2 — select the terminal by wire gauge to match the conductor cross-section.

Frequently asked questions

What compliance documentation is available for 160859-1?

The terminal is ROHS3 Compliant per the manufacturer listing.

Will 160859-1 drop into a panel specified around 927899-2?

Both terminals share the same 0.250" tab width and non-insulated crimp design, but the 160859-1 is specified for 17-20 AWG while the 927899-2 covers 18-22 AWG — confirm the wire gauge before substitution.
