TE Connectivity AMP Connectors 160859-5 — Quick-Disconnect Terminals

TE 160859-5 Fastin-Faston Tab, 0.250" 17-20 AWG, Silver

MPN160859-5
Active

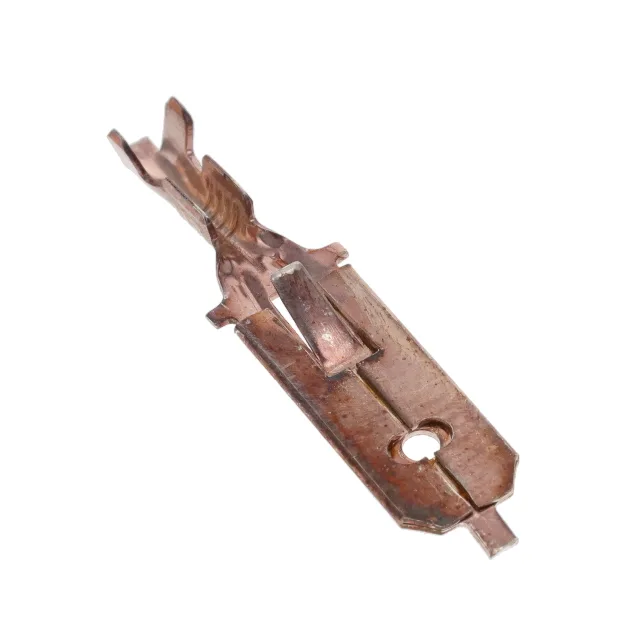

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect tab, order code 160859-5, male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 17-20 AWG, silver-plated phosphor bronze, non-insulated, crimp termination, free hanging.

$1.0500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

160859-5 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge17-20 AWG
Tab width0.250\" (6.35mm)
Contact materialPhosphor Bronze
GenderMale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.620\" (15.75mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishSilver
Length - overall1.102\" (27.99mm)
Insulation diameter0.055\" ~ 0.091\" (1.40mm ~ 2.31mm)

Product details

Tab dimensions and wire range

The 160859-5 is the male 0.250" (6.35mm) tab member of TE's Fastin-Faston quick-disconnect terminal line, accepting 17-20 AWG wire with a crimp termination. The tab is 0.620" (15.75mm) long and 0.032" (0.81mm) thick, with a silver-plated phosphor bronze contact for corrosion resistance and repeated mating cycles.

Series & positions

Within the Fastin-Faston series the 160859-5 is the 17-20 AWG male tab; the sibling 927899-2 is also a 0.250" male tab but accepts 18-22 AWG wire, so the 160859-5 covers the heavier wire gauge range.

Frequently asked questions

What compliance documentation is available for 160859-5?

The part is ROHS3 Compliant per the manufacturer listing.

Will 160859-5 drop into a panel specified around 927899-2 without rewiring?

Both are 0.250" male tabs with the same tab width and thickness, but the 927899-2 accepts 18-22 AWG while the 160859-5 accepts 17-20 AWG — the wire gauge range differs, so the wire size must match the terminal's specified range.
