TE Connectivity AMP Connectors 160864-5 — Quick-Disconnect Terminals

TE 160864-5 Fastin-Faston QC Receptacle, 0.110" Tab

MPN160864-5
Active

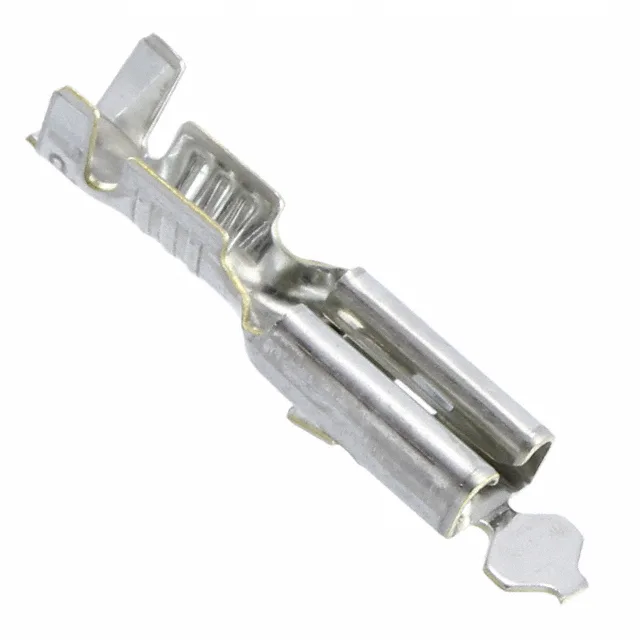

TE Connectivity AMP Fastin-Faston quick-disconnect terminal, order code 160864-5, female receptacle, 0.110" (2.79mm) tab width, 17-20 AWG, non-insulated, crimp termination, free hanging, phosphor bronze contact.

$0.2100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 160864-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

160864-5 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge17-20 AWG
Tab width0.110\" (2.79mm)
Contact materialPhosphor Bronze
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.248\" (6.30mm)
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Length - overall0.551\" (14.00mm)
Insulation diameter0.055\" ~ 0.091\" (1.40mm ~ 2.31mm)

Product details

Fastin-Faston 0.110" receptacle

The 160864-5 is a non-insulated female quick-disconnect terminal in TE's Fastin-Faston series, accepting 17-20 AWG wire with a 0.110" (2.79mm) tab width. Phosphor bronze contact material with crimp termination; free-hanging (in-line) mounting. Rated for standard-duty applications.

Tab width and wire range

The 160864-5 uses a 0.110" (2.79mm) tab width and 0.032" (0.81mm) tab thickness, accepting wire insulation diameters from 0.055" to 0.091" (1.40mm to 2.31mm).

Packaging and compliance

Supplied in Tape & Reel (TR) or Cut Tape (CT) packaging. ROHS3 compliant per TE Connectivity AMP Connectors documentation.

Frequently asked questions

Will 160864-5 drop into a panel specified around 1-1627194-4 without rewiring?

No. The 1-1627194-4 uses a 0.250" (6.35mm) tab width and accepts 15-18 AWG wire; the 160864-5 uses a 0.110" (2.79mm) tab width and 17-20 AWG. The tab dimensions and wire range are different — a panel designed for the wider tab will not accept the 160864-5 without changing the mating half.
