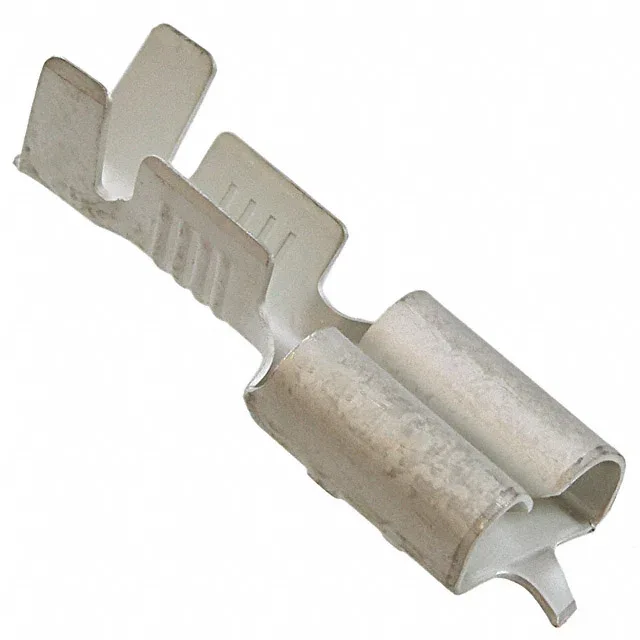

TE Connectivity AMP Connectors 160927-2 — Quick-Disconnect Terminals

TE 160927-2 Fastin-Faston QC Receptacle, 0.250" Tab

MPN160927-2
Active

TE Connectivity AMP Fastin-Faston quick-disconnect terminal, order code 160927-2, female, 0.250" (6.35mm) tab width, 13.5-17 AWG, non-insulated, tin-plated brass, crimp termination, free hanging, Tape & Reel.

$0.2800Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 160927-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

160927-2 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge13.5-17 AWG
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.756\" (19.20mm)
Insulation diameter0.083\" ~ 0.122\" (2.11mm ~ 3.10mm)

Product details

0.250" tab, 13.5–17 AWG — bench-fit for a Faston reel

The 160927-2: Tin-plated brass construction, non-insulated, crimp termination for free-hanging in-line use — the same applicator tooling that runs other Fastin-Faston 0.250" terminals handles this reel.

Wire-gauge ladder across the Fastin-Faston 0.250" family

Within the Fastin-Faston 0.250" tab-width series the 160927-2 (13.5–17 AWG) sits between the 160928-4 (17–20 AWG) and the 160914-2 (10–11 AWG) — all share the same 0.250" tab, 0.032" thickness, tin finish, and free-hanging crimp body, so the selection axis is simply the wire gauge the harness calls for.

Frequently asked questions

What wire gauge range does the 160927-2 accept?

The terminal accepts 13.5–17 AWG wire with an insulation diameter of 0.083" to 0.122" (2.11mm to 3.10mm).

Does the 160927-2 use the same tab dimensions as the 160927-4?

The difference is contact material: brass in the 160927-2, phosphor bronze in the 160927-4.
