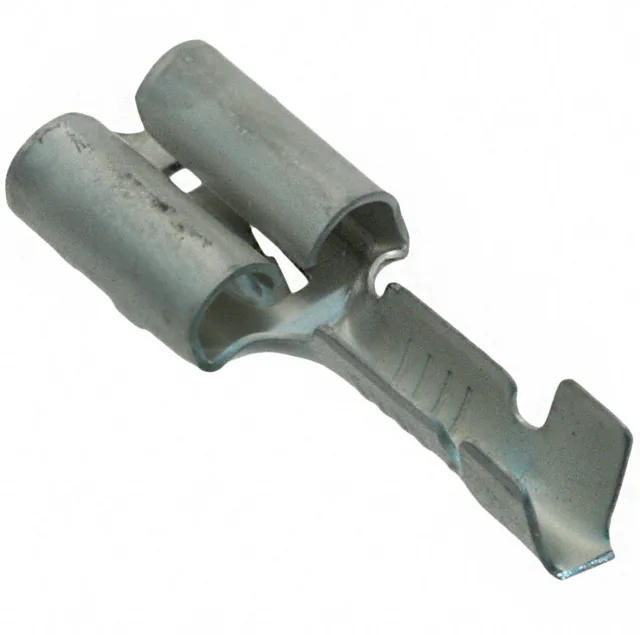

TE Connectivity AMP Fastin-Faston quick-disconnect terminal, order code 160928-4, female, 0.250" (6.35mm) tab width, 17-20 AWG, tin-plated phosphor bronze, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 17-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.305\" (7.75mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.756\" (19.20mm) |
| Insulation diameter | 0.055\" ~ 0.091\" (1.40mm ~ 2.31mm) |
The 160928-4 is a non-insulated female quick-disconnect receptacle from the TE Connectivity Fastin-Faston series, accepting 17-20 AWG wire and mating to 0.250" (6.35mm) wide male tabs. Tin-plated phosphor bronze contacts deliver standard-duty performance for free-hanging crimp applications; the 0.032" (0.81mm) tab thickness matches the industry-standard Faston interface.
The 160928-4 is ROHS3 compliant; no additional UL or IEC certification is listed in the product record.
The 160928-4 is a female receptacle in the Fastin-Faston series, designed for 0.250" (6.35mm) tab width.
