Insulated spade for 10-12 AWG

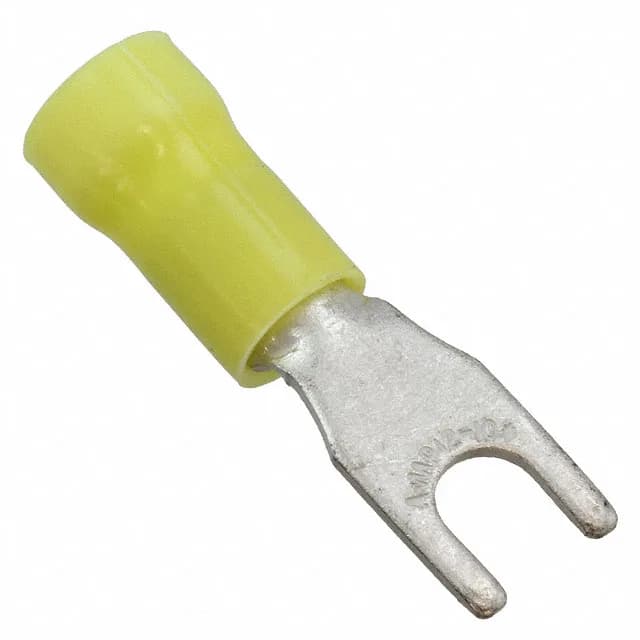

The 165015 is a yellow-insulated spade terminal from the TE PIDG series, accepting 10-12 AWG wire with a #8 stud size. The tin-plated copper contact is crimp-terminated, and the PVC insulation sleeve covers the crimp barrel and the wire entry point.
Stud fit and wire entry
The tongue inside opening is 0.185" (4.70 mm) for #8 studs, and the overall length is 1.238" (31.45 mm) with a 0.606" (15.39 mm) crimp termination section. The insulation accepts wire diameters from 0.150" to 0.252" (3.81 mm to 6.40 mm), covering the full 10-12 AWG range with a single terminal.
