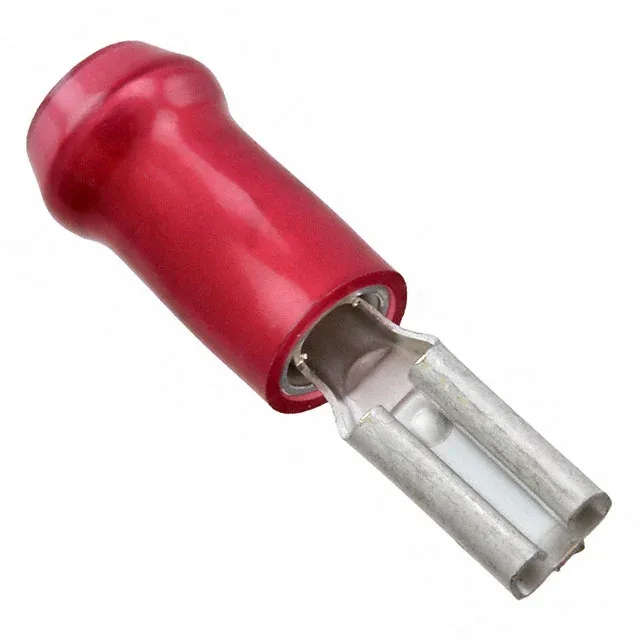

TE Connectivity AMP Faston, PIDG quick-disconnect receptacle, order code 165565-1, female, 0.110" (2.79mm) tab width, 16-22 AWG, tin-plated brass, free hanging in-line, crimp termination, red insulation.
| Parameter | Value |
|---|---|
| Series | Faston, PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Mating End Insulated |
| Tab length | 0.248\" (6.30mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.780\" (19.81mm) |
| Insulation diameter | 0.140\" (3.56mm) |
The 165565-1 is a Faston, PIDG female quick-disconnect receptacle accepting 16-22 AWG wire with a 0.110" (2.79mm) tab width and 0.020" (0.51mm) tab thickness. The non-mating end is insulated with red PVC, and the tin-plated brass contact is crimped for free-hanging in-line mounting.
Both are 0.110" tab-width female receptacles for 16-22 AWG, but 165565-1 has a 0.020" tab thickness while 165564-1 uses a 0.016" tab. The mating male tab must match the thickness for reliable retention.
