Faston PIDG receptacle, 0.110" tab, 13.5-15.5 AWG

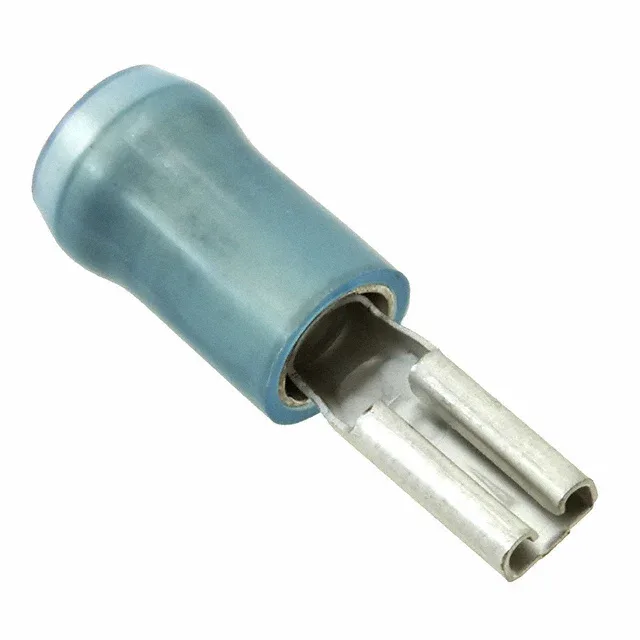

The 165616-5 is a blue, female quick-disconnect receptacle in TE Connectivity's Faston PIDG series, accepting 13.5-15.5 AWG wire with a 0.110" (2.79mm) tab width. Tin-plated phosphor bronze contact, crimp termination, free-hanging (in-line) mounting, and non-mating end insulation rated for the wire gauge range.
Tab thickness and wire gauge across the series
Within the 0.110" Faston PIDG family, the 165616-5 uses a 0.020" (0.51mm) tab thickness and 13.5-15.5 AWG wire range, while the 165615-2 uses a thinner 0.016" (0.41mm) tab for 13-15 AWG and the 165565-1 uses the same 0.020" tab but accepts 16-22 AWG wire — match the tab thickness to the mating tab and the wire gauge to the conductor.
