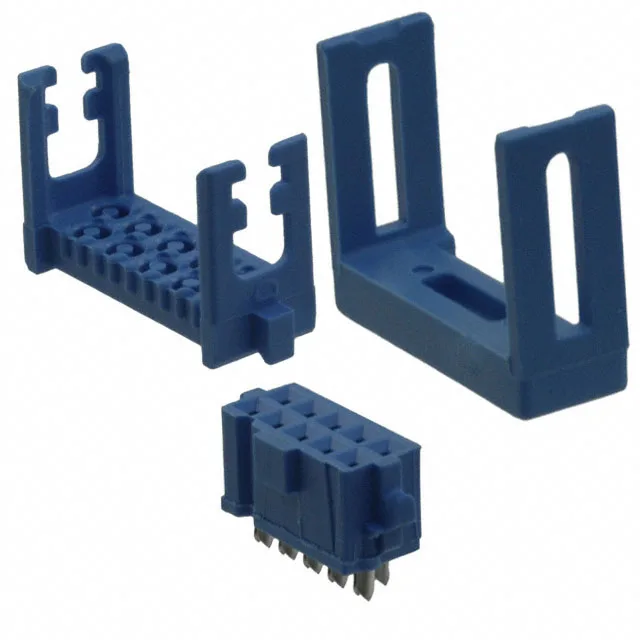

The TE Connectivity AMP-Latch 1658526-5 is a 10-position, dual-row receptacle designed for mass-termination of 28-30 AWG ribbon cable via IDC (insulation displacement) contacts. The blue housing includes a polarizing key to prevent mis-mating and an integral strain relief that clamps the cable jacket, protecting the IDC termination from pull forces during routing or service.
Contact Plating and Termination — What 30.0µin Gold Means
For a ribbon-cable interconnect that may see field-service reconnections or multiple test insertions, this plating grade is the difference between a reliable connection and one that degrades after a few cycles.
Where This Fits — Board-to-Cable and Cable-to-Cable
It mates with any AMP-Latch or compatible 0.100" pitch pin header (shrouded or unshrouded) to route signals from a PCB to a ribbon cable assembly. The free-hanging mount and strain relief make it suited for internal harnesses in equipment racks, test fixtures, or industrial controllers where the cable needs to be routed and secured without a backshell. The polarizing key ensures the connector cannot be inserted upside-down — a practical safeguard on a multi-position harness.
