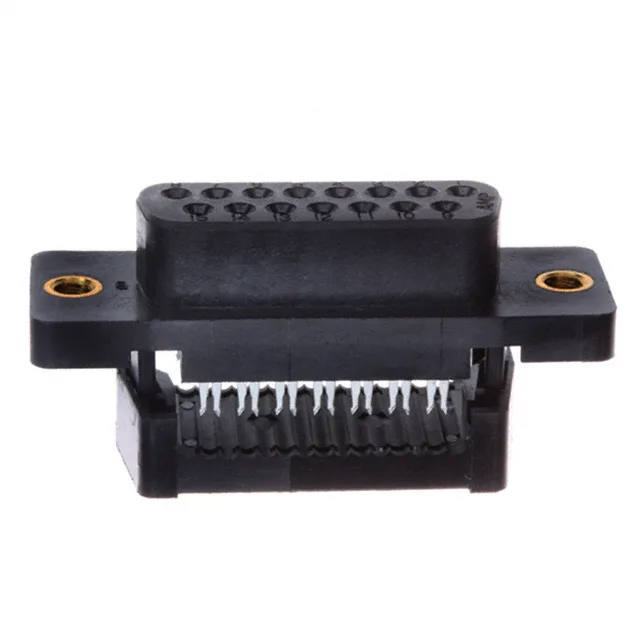

1658609-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMPLIMITE HDF-20 1658609-3, 15-Pos D-Sub IDC Receptacle

MPN1658609-3
Active

TE Connectivity AMPLIMITE HDF-20 D-sub receptacle, 15 positions, 2 rows, IDC ribbon-cable termination, 1.25A, 30 µ" gold, free-hanging, shell size DA (A).

$13.1500Ref. price · indicative, final on quote
1658609-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1658609-3 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDF-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Material flammability ratingUL94 V-0
PackageTube
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

15-Position D-Sub IDC Receptacle, AMPLIMITE HDF-20

The TE Connectivity AMPLIMITE HDF-20 1658609-3 is a 15-position D-sub receptacle with IDC termination, designed for mass-termination to 26-28 AWG ribbon cable. It's a free-hanging (in-line) female connector with a DA (A) shell size, the standard 15-pin D-sub footprint.

IDC Termination — Ribbon Cable, No Crimp Tool

This receptacle terminates via IDC (Insulation Displacement Connection) to ribbon cable, meaning the contacts pierce the insulation in one press operation — no individual wire stripping or crimping. The 26-28 AWG stranded or solid wire range is tight, typical for standard 0.050" pitch ribbon cable. The feed-through feature lets the cable pass straight through the back of the connector, which simplifies daisy-chaining or panel routing where the cable exits the rear of the shell.

Mating Half and Shell Hardware

The mating connector is a standard 15-position D-sub plug (male pin) with the same DA shell layout. The flange feature on this receptacle includes threaded 4-40 inserts for the housing/shell — it accepts the mating plug's 4-40 jackscrews or screw-lock hardware. The 2-row, 15-position layout is the classic DB-15 (DA) footprint, so any standard 15-pin D-sub plug with the same shell size and 4-40 hardware spacing will mate. The gold-on-gold contact interface (30 µ" on both sides if the plug is similarly plated) gives reliable signal contact over many mating cycles.
