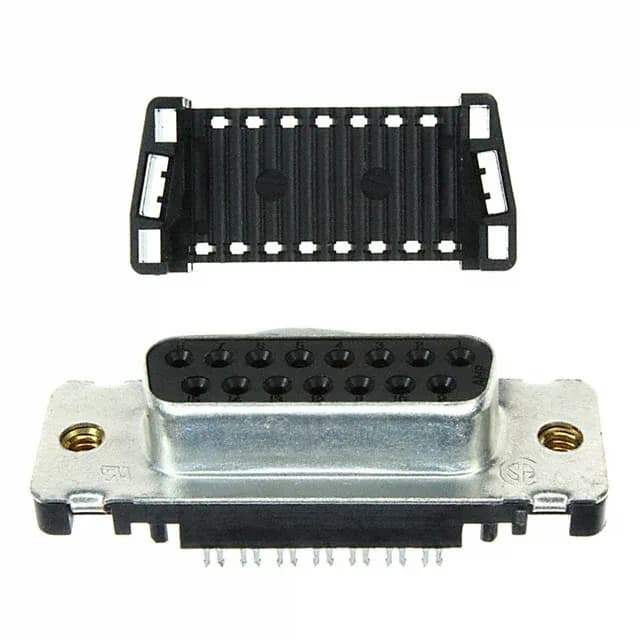

TE AMPLIMITE HDF-20 1658610-3, 15-Pos D-Sub IDC Receptacle

MPN1658610-3
Active

TE AMPLIMITE HDF-20 D-Sub receptacle, 15 positions, 2 rows, IDC ribbon cable termination, 1.25A, 30.0µin gold contacts, free-hanging, UL94 V-0.

$13.9600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDF-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1658610-3 key specifications
ParameterValue
SeriesAMPLIMITE HDF-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

1658610-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

The TE 1658610-3 is a 15-position D-Sub receptacle from the AMPLIMITE HDF-20 series, terminated via IDC to a ribbon cable rather than the usual solder cups or crimp contacts. That IDC termination is the whole point — it lets you mass-terminate a 15-conductor ribbon in one press stroke instead of landing each wire one at a time.

This connector accepts 26-28 AWG stranded or solid wire.

This is a female (receptacle) D-Sub with 15 positions in a standard DA-15 shell layout. The pinout follows the standard D-Sub assignment: two rows of 7 and 8 contacts, with the rows offset by half the 0.108-inch pitch. The 4-40 threaded inserts are on the housing flanges for the mating jackscrews. If you're replacing a solder-cup or crimp-contact D-Sub in an existing harness, the IDC termination changes the cable preparation but the mating interface is identical — it will mate with any standard DA-15 male plug.

Frequently asked questions

What wire gauge does 1658610-3 support?

The 1658610-3 accepts 26-28 AWG stranded or solid wire, which is the standard range for ribbon cable used in D-Sub I/O harnesses. The IDC termination pierces the insulation without stripping.
