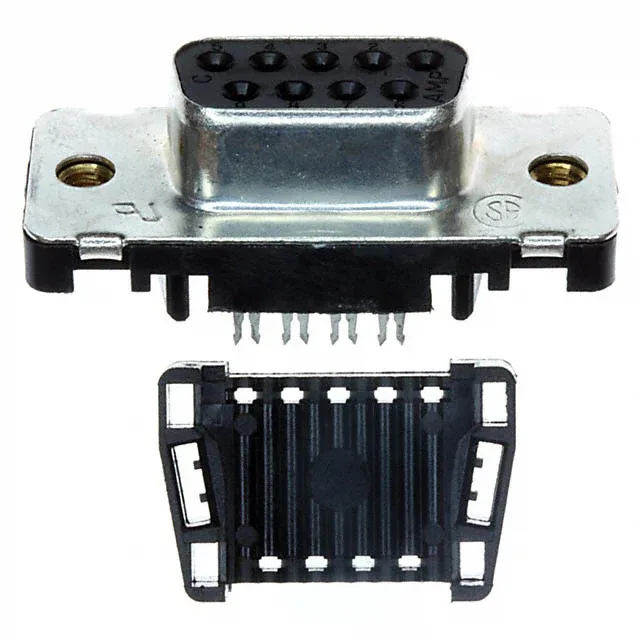

TE 1658610-4 AMPLIMITE HDF-20 D-Sub Receptacle, 9 Pos IDC

MPN1658610-4
Active

TE Connectivity AMPLIMITE HDF-20 series, D-Sub receptacle, 9 positions, 2 rows, IDC ribbon cable termination, 1.25A, 30.0µin gold contact finish, free hanging, UL94 V-0.

$10.2600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658610-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDF-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1658610-4 key specifications
ParameterValue
SeriesAMPLIMITE HDF-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

1658610-4 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

9-Position IDC D-Sub for Ribbon Cable Harnesses

It carries female sockets on a standard DE-9 shell layout (E-size), with 30.0 µ" gold-over-phosphor bronze contacts rated for 1.25 A per circuit. This is the connector you spec when a ribbon cable needs to break out to a standard D-Sub panel or mating half inside an enclosure.

The 1658610-4 terminates 26-28 AWG stranded or solid wire via IDC, designed specifically for ribbon cable. On a harness build, this means a single gang-press tool seats all 9 conductors simultaneously, which keeps labour low and repeatability high.

Mating Half and Mechanical Fit

The flange feature accepts 4-40 jackscrews or screw-locks for vibration-resistant mating.

Contact Finish and Current Duty

The 1.25 A per-contact rating is signal-level current; this is not a power interconnect.

Frequently asked questions

Where can I buy 1658610-4 and how do I get a price?

Submit a request for quote with your target quantity, and availability and current pricing will be confirmed at quote time.

What wire gauge does 1658610-4 support?

The IDC termination accepts 26-28 AWG wire, both stranded and solid, making it compatible with standard ribbon cable gauges in that range.

What is the mating connector for 1658610-4?

This receptacle mates with any standard DE-9 D-Sub plug (male) having the same shell size and 4-40 threaded insert spacing. The 4-40 flange feature allows jackscrew or screw-lock retention.
