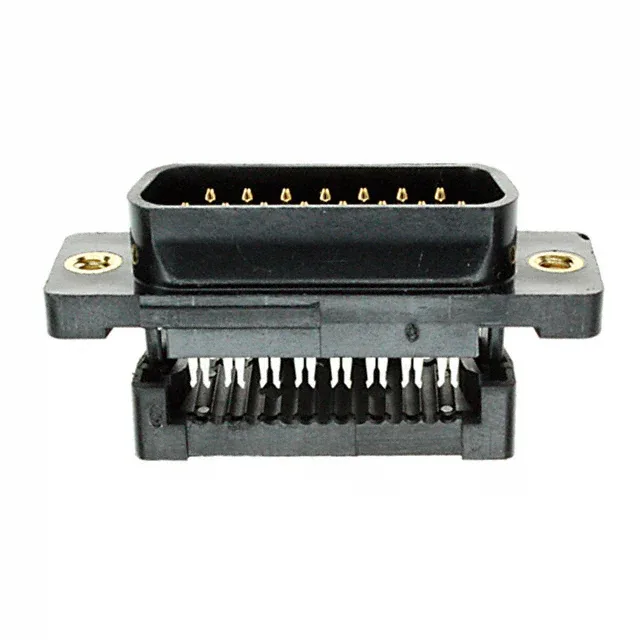

TE AMPLIMITE HDF-20 1658611-3, 15-Pos D-Sub Plug, IDC

MPN1658611-3
Active

TE Connectivity AMPLIMITE HDF-20, D-Sub plug, 15 positions, 2 rows, IDC ribbon cable termination, 26-28 AWG, gold contacts, 1.25A, free-hanging, black thermoplastic shell, UL94 V-0.

$9.0600Ref. price · indicative, final on quote
1658611-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1658611-3 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDF-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Material flammability ratingUL94 V-0
PackageTube
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions15

Product details

15-Position D-Sub Plug for IDC Ribbon Cable

It accepts 26-28 AWG stranded or solid conductors, making it a direct-fit choice for mass-termination harnesses where a solder-cup or crimp D-sub would add assembly time.

The IDC termination style means the ribbon cable is pressed onto bifurcated contacts that pierce the insulation — no stripping, no crimping, no soldering. The 26-28 AWG range covers standard 0.050-inch pitch ribbon cable used in parallel data and signal buses. The free-hanging (in-line) mounting keeps the connector off the PCB, which is typical for a cable-to-panel or cable-to-cable D-sub run. The housing/shell flange carries 4-40 threaded inserts for the mating jack-screws, so the pair stays locked under vibration.
