TE Connectivity AMP Connectors 1658612-3 — D-Sub Cable Assemblies

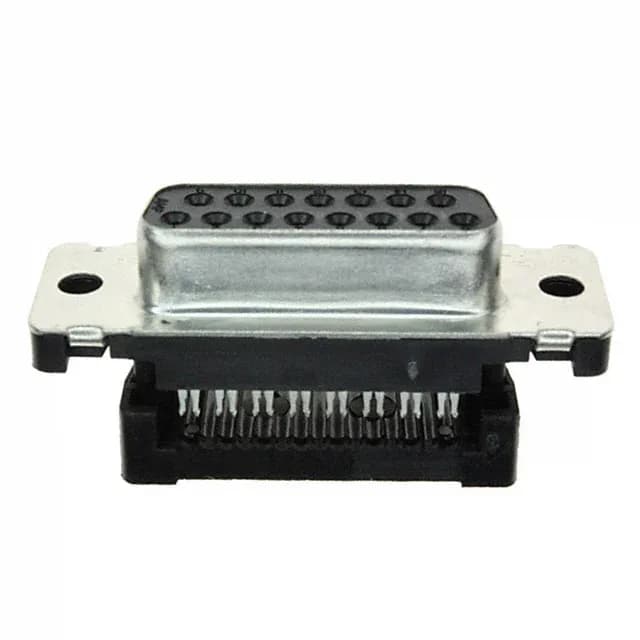

TE Connectivity 1658612-3 AMPLIMITE HDF-20 D-Sub Receptacle

MPN1658612-3
Active

TE Connectivity AMPLIMITE HDF-20 series, D-Sub receptacle, 15 positions, 2 rows, IDC termination for ribbon cable, gold-plated contacts, free hanging, 1.25 A, UL94 V-0.

$9.8200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658612-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDF-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658612-3 key specifications
ParameterValue
SeriesAMPLIMITE HDF-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

1658612-3 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15
Contact finish thickness30.0µin (0.76µm)

Product details

It uses a free-hanging (in-line) mounting style, so it lands as a cable-end connector rather than a panel-mount or PCB-solder version.

The IDC termination accepts 26-28 AWG stranded or solid wire — the insulation displacement forks pierce the ribbon cable jacket in one press operation. No stripping or crimping needed; a standard IDC hand press or pneumatic tool seats the cable in the slot. The feed-through feature means the cable passes through the connector body, simplifying daisy-chain or pass-through wiring in a harness.

The unthreaded housing/shell flange means it uses a slide-lock or screw-lock retention system.

Ratings and Environment

Frequently asked questions

What is the 1658612-3 and what does it mate with?

The 1658612-3 is a 15-position D-sub receptacle (female sockets) from the TE AMPLIMITE HDF-20 series. It mates with any standard DA-15 D-sub plug (male) having the same shell size and layout.

Does 1658612-3 work with standard ribbon cable?

Yes, the 1658612-3 uses IDC termination designed for 26-28 AWG stranded or solid ribbon cable. The feed-through feature allows the cable to pass through the connector body.
