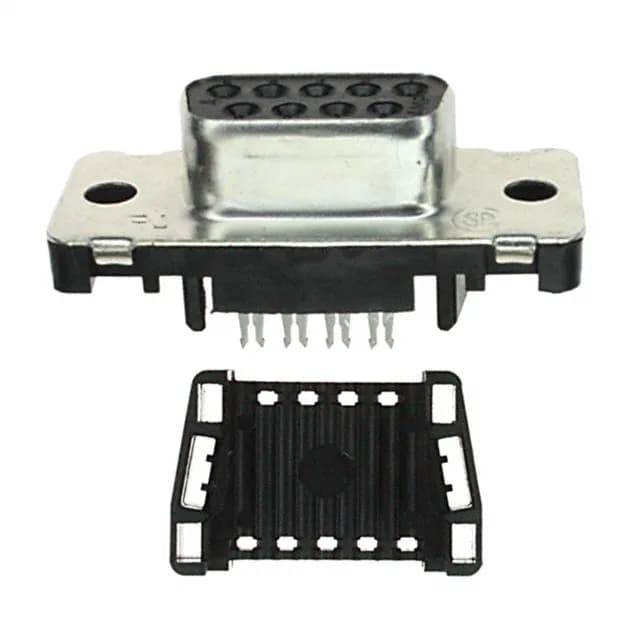

TE 1658612-4 AMPLIMITE HDF-20 D-Sub Receptacle, 9 Pos IDC

MPN1658612-4
Active

TE Connectivity AMPLIMITE HDF-20 D-Sub receptacle, 9 positions, 2 rows, IDC ribbon cable termination, 26-28 AWG, 30 µ" gold contacts, 1.25 A, free-hanging, black thermoplastic shell, UL94 V-0.

$6.5600Ref. price · indicative, final on quote
1658612-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1658612-4 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDF-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout1 (DE, E)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity 1658612-4 is a 9-position D-Sub receptacle from the AMPLIMITE HDF-20 series, terminated via IDC to ribbon cable. It uses the standard DE-9 shell layout (1/DE/E) and accepts 26-28 AWG stranded or solid conductors.

Termination and Wiring

IDC termination means the ribbon cable is pressed onto the insulation-displacement contacts in one operation — no individual wire stripping or crimping. The wire gauge range of 26-28 AWG covers the standard ribbon cable sizes used for D-Sub I/O. The free-hanging (in-line) mounting style with an unthreaded flange allows the connector to be panel-mounted with a simple cutout and clip, or left as a floating cable-end receptacle. The feed-through feature indicates the IDC contacts pass the signal straight through the connector body without a PCB interface.
