TE Connectivity AMP Connectors 1658613-2

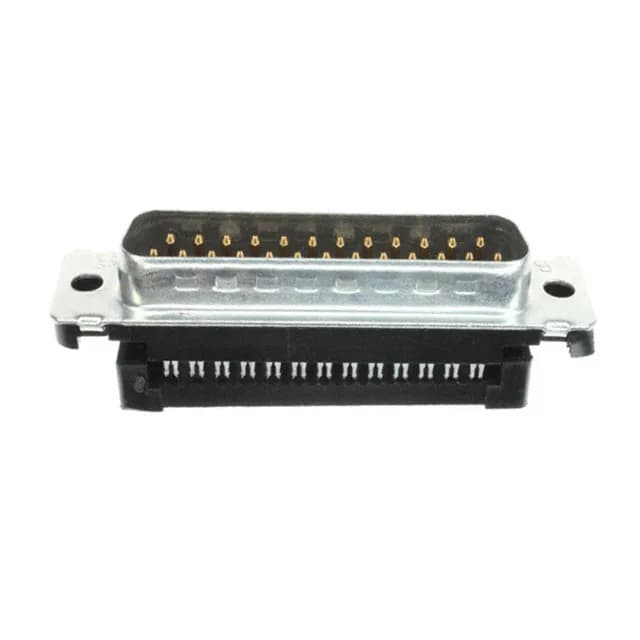

TE AMPLIMITE HDF-20 1658613-2, D-Sub Plug 25 Pos IDC

MPN 1658613-2
Active

TE Connectivity AMPLIMITE HDF-20 1658613-2, D-Sub Plug, 25 Position, 2 Row, IDC Termination, 1.25A, Gold Contacts, Free Hanging, Black.

$9.9600 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesAMPLIMITE HDF-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658613-2 key specifications
ParameterValue
SeriesAMPLIMITE HDF-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug, Male Pins
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated

All specifications

1658613-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageBulk
FeaturesFeed Through, Grounding Indents
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25

Product details

The 1658613-2: IDC termination — the contacts pierce the ribbon cable insulation in a single press operation, no wire stripping or crimping. Accepts 26-28 AWG stranded or solid conductors. The 2-row layout matches standard 0.054-inch pitch ribbon cable. The unthreaded housing/shell flange allows panel mounting with screws (not included).

Grounding and Shielding

Includes feed-through and grounding indents — the indents on the steel shell make contact with the mating receptacle's shell, providing shield continuity without dedicated ground pins. This helps bleed common-mode noise and EMI before it reaches the signal contacts.
