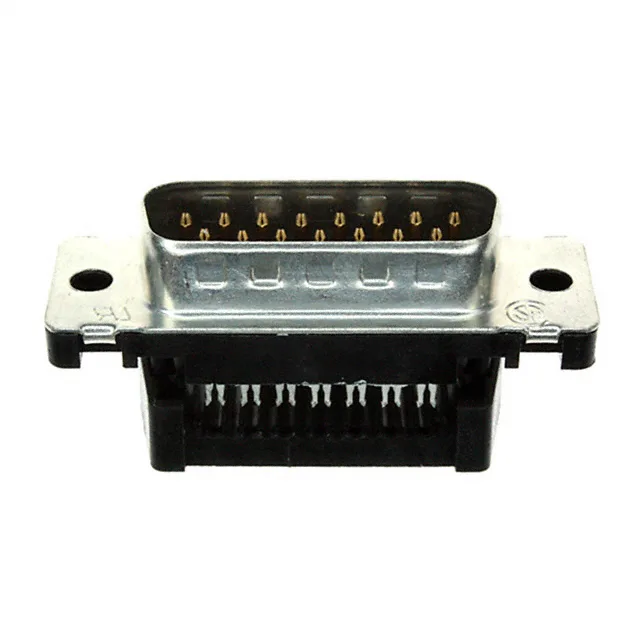

TE AMPLIMITE HDF-20 1658613-3, D-Sub Plug 15 Pos IDC

MPN1658613-3
Active

TE Connectivity AMPLIMITE HDF-20 D-Sub Plug, 15 Positions, 2 Rows, IDC Termination, 26-28 AWG, Gold Contacts, Steel Shell, Black Thermoplastic, UL94 V-0.

$8.6400Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1658613-3 Technical Specifications
ParameterValue
SeriesAMPLIMITE HDF-20
GenderSignal
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pins
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout2 (DA, A)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Shell material, finishSteel, Tin Plated
Material flammability ratingUL94 V-0
PackageBulk
FeaturesFeed Through, Grounding Indents
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15

Product details

The TE Connectivity AMPLIMITE HDF-20 1658613-3 is a 15-position D-sub plug with male pins, designed for IDC termination to 26-28 AWG stranded or solid ribbon cable. It sits in the standard DA (A) shell size — the 15-pin layout that matches the common DB-15 footprint.

Termination and Cable Prep — What the IDC Means for Your Build

This is an IDC (insulation displacement) connector, not a crimp or solder type. It accepts 26-28 AWG stranded or solid wire — the narrower range than a typical IDC connector (many take 24-28 AWG) means the cable spec is locked: if your harness uses 24 AWG ribbon, this part won't terminate reliably. The steel shell with tin plating and the grounding indents provide a continuous shield path from the cable braid through the connector body to the mating receptacle shell.

Contact Metallurgy and Duty Cycle

Gold-plated phosphor bronze contacts. Phosphor bronze as the base spring material holds contact force after years of thermal cycling. For a 15-position fully loaded connector, that's 18.75 A total across the interface, but the derating curve (not published here) will pull that down above 85°C ambient.

Frequently asked questions

Does the 1658613-3 include a backshell or strain relief?
