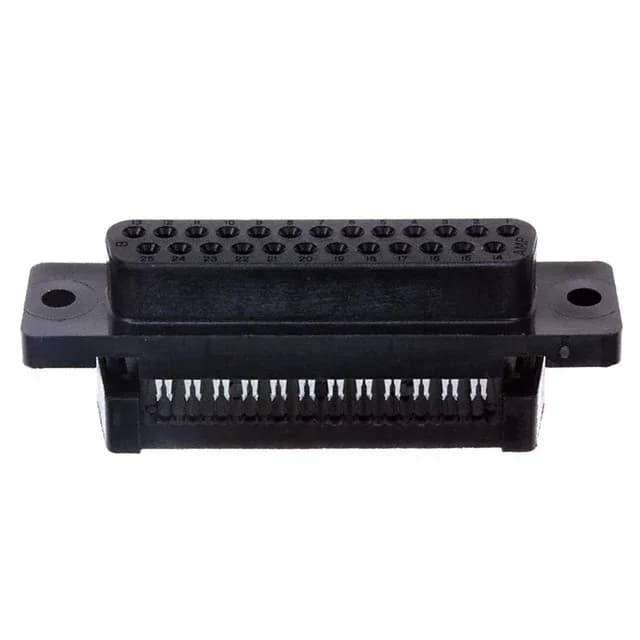

TE AMPLIMITE HDF-20 1658614-2, D-Sub Receptacle 25 Pos IDC

MPN1658614-2
Active

TE Connectivity AMPLIMITE HDF-20 1658614-2, D-Sub receptacle, 25 positions, 2 rows, IDC ribbon cable termination, 1.25A, gold 30.0µin contact finish, free-hanging, black thermoplastic UL94 V-0 housing.

$10.3200Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658614-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDF-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658614-2 key specifications
ParameterValue
SeriesAMPLIMITE HDF-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle, Female Sockets
Current rating1.25A
Wire gauge26-28 AWG, Stranded or Solid
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialPhosphor Bronze
Dielectric materialThermoplastic
Material flammability ratingUL94 V-0

All specifications

1658614-2 additional specifications
ParameterValue
PackageBulk
FeaturesFeed Through
TerminationIDC, Ribbon Cable
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions25
Contact finish thickness30.0µin (0.76µm)

Product details

25-Position D-Sub Receptacle for Ribbon Cable

It uses the standard DB-25 shell layout (3, DB, B), so it fits the same panel cutout and mates with any DB-25 plug.

IDC Termination — Wire Range and Cable Fit

The IDC termination accepts 26-28 AWG stranded or solid wire, ribbon cable only. That makes harness assembly fast, but it is a one-shot termination: a mis-routed wire means cutting the cable and starting over. The feed-through feature means the cable can pass straight through the connector body, which simplifies daisy-chaining in a harness.

Frequently asked questions

What wire gauge does 1658614-2 support?

The IDC termination accepts 26-28 AWG stranded or solid wire, for ribbon cable only.

What is the mating connector for 1658614-2?

It mates with any standard DB-25 D-Sub plug (male) with the same shell size (3, DB, B). The unthreaded flange means the mating plug's jack-screws provide the retention.
