TE Connectivity AMP Connectors 1658620-5 — Panel-Mount & In-Line Circular

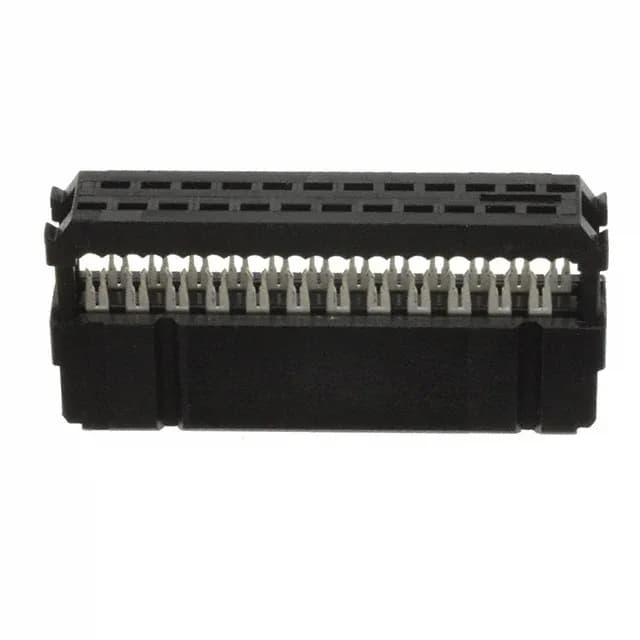

TE AMP-Latch 1658620-5, 24-Position IDC Receptacle

MPN1658620-5
Active

TE Connectivity AMP-Latch receptacle, 24 positions, 0.100" (2.54mm) pitch, 2 rows, IDC termination, gold 15.0µin (0.38µm) contacts, 26-28 AWG ribbon cable, free hanging, black, tube.

$2.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1658620-5 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeForked
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold
Rows2
Positions24
Contact finish thickness15.0µin (0.38µm)

Product details

The TE Connectivity AMP-Latch 1658620-5 is a 24-position IDC receptacle built for mass-terminating 26-28 AWG ribbon cable. The black housing includes a feed-through feature that lets the cable pass straight through the connector body, which simplifies daisy-chaining in a harness.

The 26-28 AWG range covers the most common ribbon cable gauges for internal signal harnesses. The forked contact design pierces the insulation and wipes the conductor on insertion; the feed-through slot in the housing lets the ribbon cable exit straight out the back, which is useful when you're stacking multiple connectors along one cable run.

The base product number is 1658620, which covers the AMP-Latch IDC receptacle family across position counts.

Frequently asked questions

What wire gauge is 1658620-5 compatible with?

The 1658620-5 accepts 26-28 AWG ribbon cable. The IDC termination is designed for standard 0.100" pitch rainbow ribbon cable with solid or stranded conductors in that gauge range.
