TE Connectivity AMP Connectors 1658623-2 — Panel-Mount & In-Line Circular

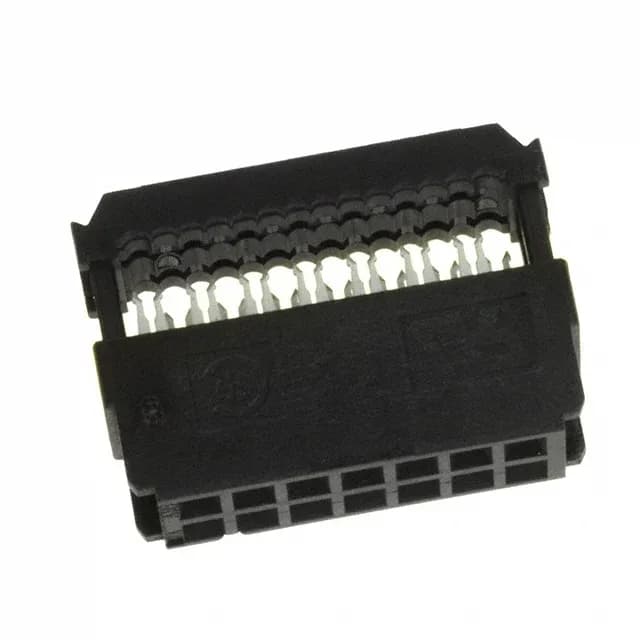

TE AMP-Latch 1658623-2, 14-Position IDC Receptacle

MPN1658623-2
Active

TE Connectivity AMP-Latch receptacle, 14 positions, 2 rows, 0.100" (2.54mm) pitch, IDC termination, 26-28 AWG ribbon cable, gold or gold-palladium 30.0µin contacts, free hanging, black, bulk.

$1.7900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658623-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658623-2 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeForked
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold-Palladium
Rows2
Positions14
Contact finish thickness30.0µin (0.76µm)

Product details

The TE Connectivity AMP-Latch 1658623-2 is a 14-position, dual-row IDC receptacle designed for mass-termination of 26-28 AWG ribbon cable. The 0.100" (2.54mm) pitch matches the standard 0.100" header grid, making this a drop-in fit for parallel data buses, control signal harnesses, and peripheral interconnects where a reliable, field-serviceable connection is needed.

The IDC termination accepts 26-28 AWG ribbon cable; the feed-through feature allows daisy-chaining multiple connectors along the same cable run without cutting the ribbon.

Frequently asked questions

What is the mating header for 1658623-2?

The 1658623-2 mates with any standard 0.100" pitch pin header, typically from the AMP-Latch or equivalent shrouded header series. The dual-row, 14-position layout requires a matching 14-circuit male header with 0.100" row spacing.

Is 1658623-2 RoHS compliant?

Yes, the 1658623-2 is ROHS3 Compliant, covering the latest EU exemption list.

Can 1658623-2 be used with 28 AWG wire?

Yes, the IDC termination is rated for 26-28 AWG ribbon cable, so 28 AWG is within the specified range.
