TE Connectivity AMP Connectors 1658623-4 — Panel-Mount & In-Line Circular

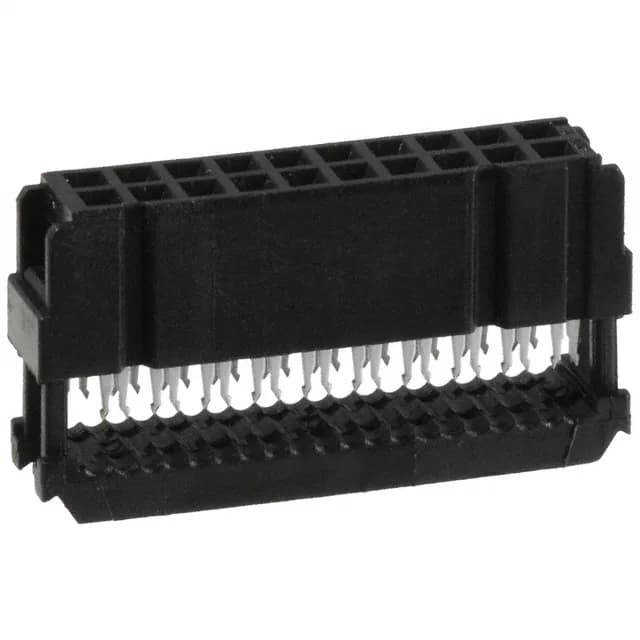

TE AMP-Latch 1658623-4, 20 Pos IDC Receptacle, 0.100" Pitch

MPN1658623-4
Active

TE Connectivity AMP-Latch, 20 Position IDC Receptacle, 0.100" (2.54mm) Pitch, 2 Row, Free Hanging, Gold or Gold-Palladium Contact Finish, 30.0µin (0.76µm), 26-28 AWG Ribbon Cable.

$1.9300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658623-4 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

1658623-4 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeForked
MountingFree Hanging (In-Line)
Connector typeReceptacle
Wire gauge26-28 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold-Palladium
Rows2
Positions20
Contact finish thickness30.0µin (0.76µm)

Product details

20-Position IDC Receptacle for 0.100" Pitch Ribbon Cable

The TE Connectivity AMP-Latch 1658623-4 is a 20-position IDC receptacle designed for mass-termination to 26-28 AWG ribbon cable. It uses a two-row layout on a 0.100" (2.54mm) pitch, matching the standard footprint for AMP-Latch headers and D-sub pin-out adapters. The forked contacts are plated with gold or gold-palladium at 30.0µin (0.76µm), giving it the mating cycle life needed for repeated connect-disconnect in test equipment and I/O panels.

Frequently asked questions

Where can I buy 1658623-4 and how do I get a price?

The 1658623-4 is sourced to order against an RFQ through independent distribution. Submit a request for quote — availability and current pricing are confirmed at quote time.

Will 1658623-4 drop into a panel that was specified around 1658623-3 without rewiring?

The 1658623-4 is a 20-position receptacle while the 1658623-3 is a 16-position version. Both share the same 0.100" pitch, two-row layout, and IDC termination, but the 20-position part is physically longer and requires a 20-conductor ribbon cable. A panel wired for 16 positions would need rewiring to use the 20-position connector.
