TE Connectivity AMP-Latch, Receptacle, 40 Positions, 2 Rows, 0.100" (2.54mm) Pitch, IDC Termination, 26-28 AWG, Gold or Gold-Palladium Contacts, Free Hanging, Black, Bulk.
| Parameter | Value |
|---|---|
| Series | AMP-Latch |
| Wire type | Ribbon Cable |
| Type | Forked |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle |
| Wire gauge | 26-28 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Feed Through |
| Row spacing | 0.100\" (2.54mm) |
| Contact finish | Gold or Gold-Palladium |
| Rows | 2 |
| Positions | 40 |
| Contact finish thickness | 30.0µin (0.76µm) |

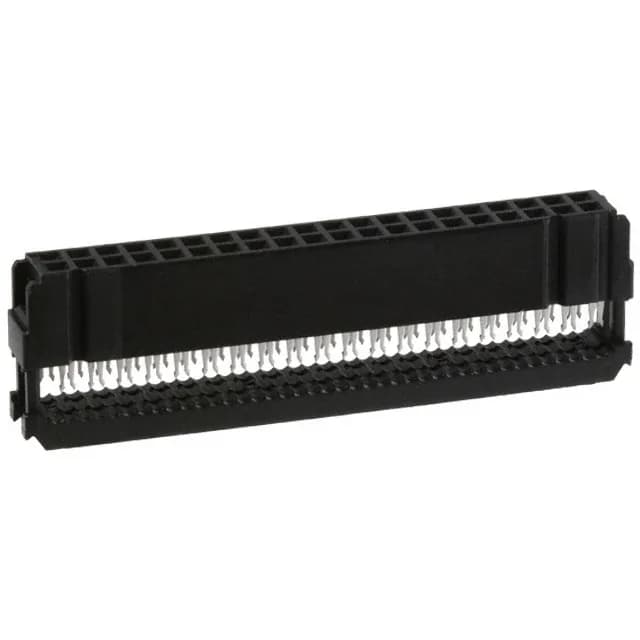

The TE Connectivity AMP-Latch 1658623-9 is a 40-position IDC receptacle built for mass-terminating 26-28 AWG ribbon cable.
The wire gauge range is 26-28 AWG, so grab the right ribbon stock before the harness run. The free-hanging (in-line) mount means this receptacle sits in the cable path, not on a board; the feed-through feature lets the ribbon cable pass straight through without a 90° bend, which keeps the signal path clean inside the enclosure.
1658623-9 is sourced to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — no stock-holding claim is made on this listing.
The AMP-Latch 1658623-9 accepts 26-28 AWG ribbon cable for its IDC termination.
Yes, 1658623-9 is ROHS3 Compliant per the manufacturer's listing.
