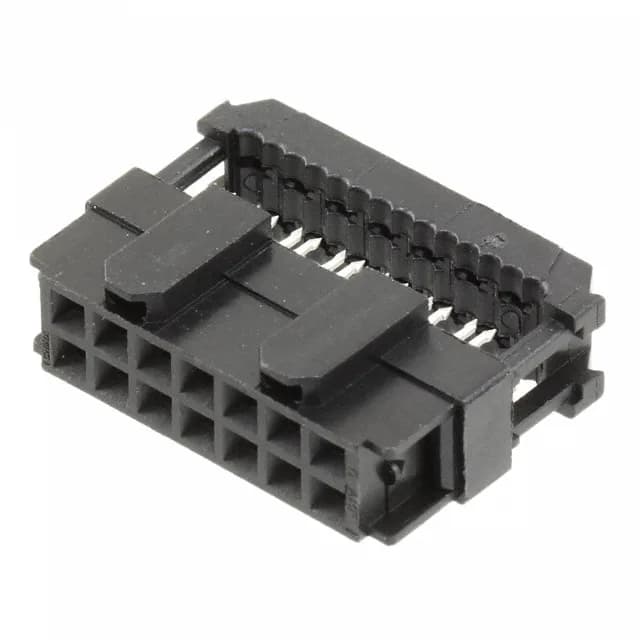

1658624-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE AMP-Latch 1658624-2, 14-Pos IDC Receptacle, 0.100" Pitch

MPN1658624-2
Active

TE Connectivity AMP-Latch IDC receptacle, 14 positions, 2 rows, 0.100" (2.54mm) pitch, free-hanging, forked contacts with 30.0µin gold or gold-palladium plating, ribbon cable termination.

$11.1100Ref. price · indicative, final on quote
1658624-2 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

1658624-2 Technical Specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
GenderForked
Mounting typeFree Hanging (In-Line)
Connector typeReceptacle
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold-Palladium
Rows2
Positions14
Contact finish thickness30.0µin (0.76µm)

Product details

AMP-Latch 14-Position IDC Receptacle for Ribbon Cable

The TE Connectivity AMP-Latch 1658624-2 is a 14-position IDC receptacle designed for mass-termination to 0.100" (2.54mm) pitch ribbon cable. It is a dual-row, free-hanging (in-line) connector that uses forked contacts to pierce the cable insulation — no wire stripping or crimping required. The housing includes a feed-through feature and a polarizing key to prevent mis-mating with the header.

IDC Termination and Harness Assembly

Termination is by IDC — the ribbon cable is pressed onto the forked contacts using a hand or pneumatic press. The connection is permanent; individual wires cannot be replaced.
