TE Connectivity AMP Connectors 1658624-4 — Panel-Mount & In-Line Circular

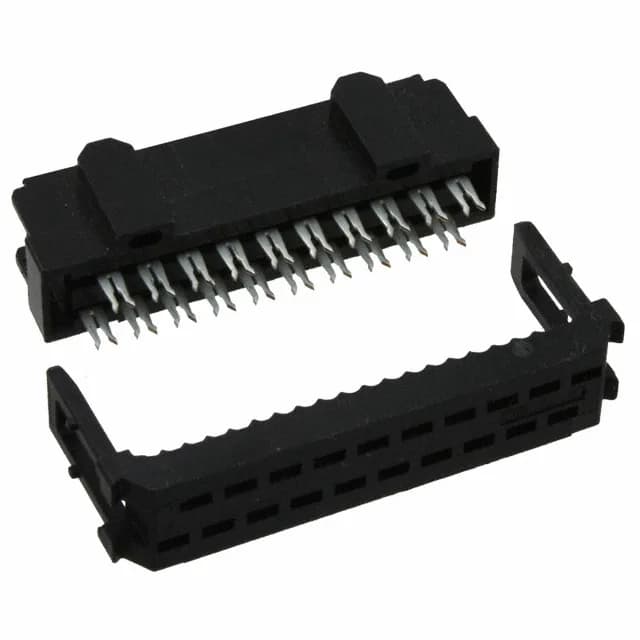

TE AMP-Latch 1658624-4 Receptacle, 20 Pos IDC, 0.100" Pitch

MPN1658624-4
Active

TE Connectivity AMP-Latch receptacle, 1658624-4, 20 positions, 2 rows, 0.100" (2.54 mm) pitch, IDC termination, 30.0 µ" gold or gold-palladium contacts, free hanging (in-line), black, ROHS3 compliant.

$2.3700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMP-Latch
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658624-4 specifications
ParameterValue
SeriesAMP-Latch
Wire typeRibbon Cable
TypeForked
MountingFree Hanging (In-Line)
Connector typeReceptacle
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageTube
FeaturesFeed Through, Polarizing Key
Row spacing0.100\" (2.54mm)
Contact finishGold or Gold-Palladium
Rows2
Positions20
Contact finish thickness30.0µin (0.76µm)

Product details

0.100" Pitch and Polarizing Key — Board Fit and Orientation

The dual-row layout packs 20 positions into a 10-per-row format that keeps the cable width manageable. A feed-through slot and polarizing key on the housing ensure the receptacle mates only with the matching slotted header; reversed or offset insertion is physically blocked, which saves a mis-wired harness from reaching test.

It is ROHS3 Compliant, so it ships into RoHS-regulated regions without exemption paperwork.

Termination and Mating — IDC Press and Header Match

The polarizing key and feed-through slot on the receptacle align with the matching slot on the header; if the header lacks the slot, the connector will not seat.

Frequently asked questions

Where can I buy 1658624-4 in stock?

Buyers need immediate sourcing options to avoid project delays.

What is the datasheet for 1658624-4?

Design engineers need to validate electrical and mechanical specs before use.

Is 1658624-4 RoHS compliant?

Compliance is critical for regulations and customer requirements.

What is the pitch of 1658624-4?

Pitch determines compatibility with standard ribbon cable and board layout.

What is a replacement or equivalent for 1658624-4?

Sourcing buyers need alternatives for cost or availability reasons.

What is the contact finish on 1658624-4?

Contact finish affects reliability and durability in harsh environments.
