TE Connectivity AMP Connectors 1658646-1 — D-Sub & D-Shaped Connectors

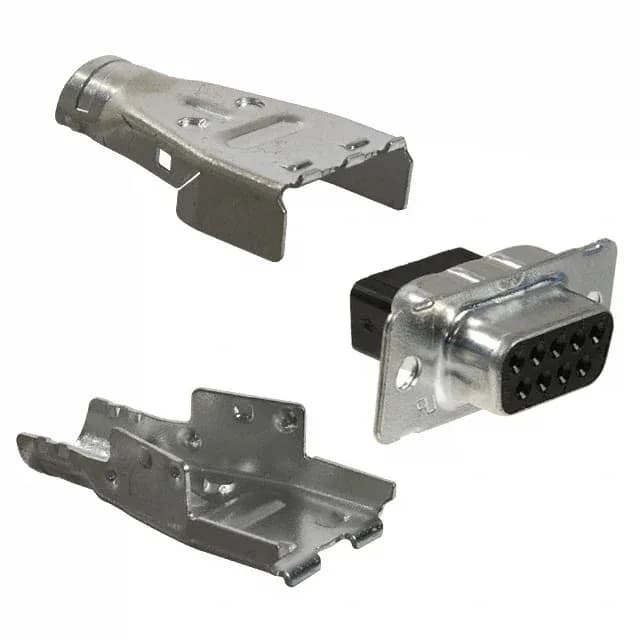

TE AMPLIMITE HDP-20 1658646-1, D-Sub Receptacle Housing

MPN1658646-1
Active

TE Connectivity AMPLIMITE HDP-20, D-Sub Receptacle Housing, 9 Positions, 2 Rows, Shell Size 1 (DE, E), Shielded, Steel Shell with Tin Plating, Free Hanging (In-Line), Contacts Not Included.

$3.4700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658646-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

1658646-1 specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle for Female Contacts
Shell size, connector layout1 (DE, E)
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
FeaturesShielded
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9
Shell finish thickness200µin (5.08µm)

Product details

D-Sub Receptacle Housing for Field Wiring and Panel Mount

The 2-row layout matches the standard 9-pin D-sub footprint, making it a direct mate for any DE-size D-sub plug. The steel shell carries a tin plating with 200µin (5.08µm) finish, providing EMI/RFI shielding for signal integrity in electrically noisy environments. The unthreaded housing/flange means panel retention relies on a separate jack-screw or slide-lock hardware — not included — so plan for that in the assembly BOM.

Shielded Construction and Panel Fit

The steel shell with tin plating and 200µin finish is the primary EMI barrier. For a shielded cable assembly, the backshell or hood must bond to this shell to complete the shield path. The DE-1 shell size is the standard for 9-position D-subs, so any DE-size backshell, hood, or strain relief will fit this housing.

Frequently asked questions

Is 1658646-1 shielded for EMI protection?

Yes. The steel shell with tin plating and 200µin finish provides EMI/RFI shielding. For the shield to be effective, the cable assembly must include a backshell or hood that bonds to this shell.

Is 1658646-1 compatible with standard D-Sub connectors?

Yes. This is a standard DE-1 (E) shell size D-sub receptacle housing. It mates with any DE-size D-sub plug connector, including standard-density 9-position plugs from TE, Amphenol, or other manufacturers that follow the D-subminiature interface standard.
