TE Connectivity AMP Connectors 1658690-1 — D-Sub & D-Shaped Connectors

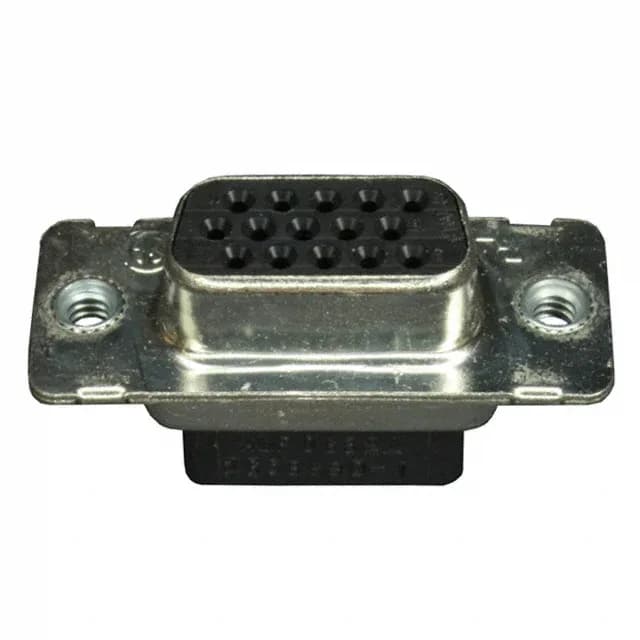

TE 1658690-1 AMPLIMITE HDP-22 D-Sub HD Receptacle Housing

MPN1658690-1
Active

TE Connectivity AMPLIMITE HDP-22 D-Sub high-density receptacle housing, 1658690-1, 15 positions, 3 rows, DE shell size, cable-side 4-40 flange, free-hanging, black PA housing, contacts not included.

$13.6100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 1658690-1 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-22
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1658690-1 specifications
ParameterValue
SeriesAMPLIMITE HDP-22
TypeSignal
MountingFree Hanging (In-Line)
Connector typeReceptacle for Female Contacts
Shell size, connector layout1 (DE, E) High Density
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
Flange featureCable Side (4-40)
Rows3
Positions15
Shell finish thickness200µin (5.08µm)

Product details

High-Density D-Sub Receptacle Housing for 15-Position Harness Builds

The free-hanging (in-line) mount and cable-side 4-40 threaded flange make it suited for cable-to-panel or cable-to-cable harness assemblies where the receptacle mounts to the cable end and the flange accepts standard D-sub jack-screws for secure mating.

Shell, Flange, and Housing Construction

The shell is steel with tin plating, 200 µin (5.08 µm) finish thickness. The dielectric insert is glass-filled nylon (PA), black.

Contact Selection and Termination

Contacts are not included; order matching AMPLIMITE HDP-22 crimp terminals separately.

Frequently asked questions

What contacts fit TE 1658690-1 housing?

Buyers need to select the correct crimp contacts for this housing to assemble a complete connector.

Where can I buy 1658690-1 in stock?

Sourcing buyers need immediate availability and distributor options to avoid production delays.

Is 1658690-1 RoHS compliant?

Environmental compliance is critical for many industries to meet regulatory requirements.

What is the datasheet for 1658690-1?

Design engineers require detailed specs and dimensions to validate fit and compatibility.

What is the difference between 1658690-1 and 1658690-2?

Buyers comparing variations need to ensure they order the correct version for their application.

Does 1658690-1 include contacts?

Clarifying that contacts are not included prevents order errors and ensures correct bill of materials.
