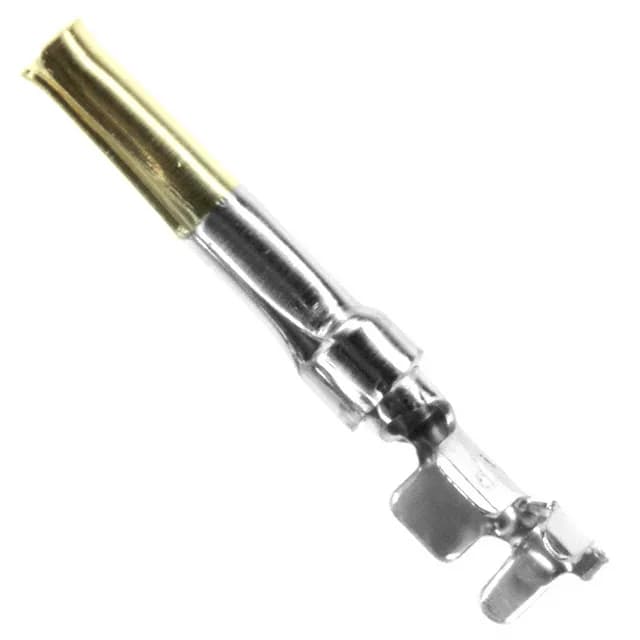

TE Connectivity AMP Connectors AMPLIMITE HDP-20 signal contact, order code 166291-1, female socket, size 20, stamped, 20-24 AWG, gold-plated phosphor bronze, crimp termination, bulk.
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Series | AMPLIMITE HDP-20 |
| Contact form | Stamped |
| Wire gauge | 20-24 AWG |
| Contact material | Phosphor Bronze |
| Package | Bulk |
| Features | Insulation Support |
| Contact size | 20 |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 166291-1 is a size 20 stamped female socket in the AMPLIMITE HDP-20 series, designed for crimp termination onto 20-24 AWG wire. The contact uses phosphor bronze base material with a gold finish, and the insulation support feature helps stabilize the wire-to-contact transition during crimping.
