TE Connectivity AMP Connectors 167292-1 — D-Sub & D-Shaped Connectors

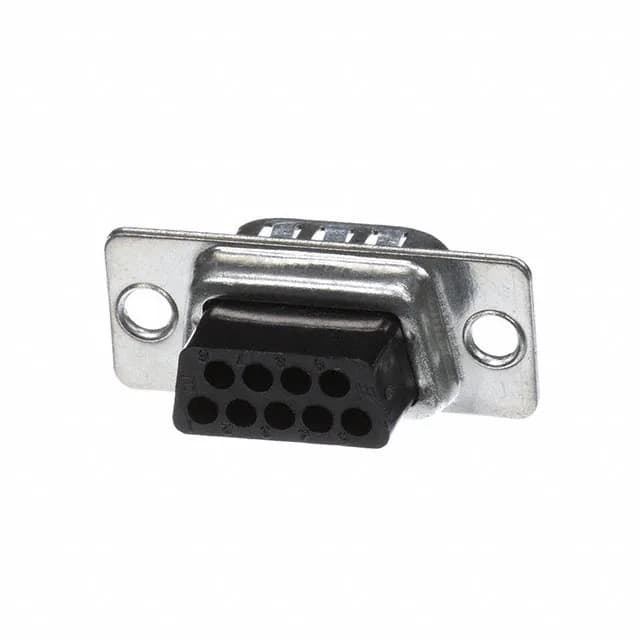

TE Connectivity 167292-1 AMPLIMITE HDP-20 D-Sub Plug Housing

MPN167292-1
Active

TE Connectivity AMPLIMITE HDP-20 D-Sub plug housing, 167292-1, 9 positions, 2 rows, free-hanging in-line mount, steel shell with tin plating, black nylon housing, unthreaded flange, contacts not included.

$2.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesAMPLIMITE HDP-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

167292-1 specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug for Male Contacts
Shell size, connector layout1 (DE, E)
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions9

Product details

D-Sub Plug Housing for Field Wiring

The shell size is DE (E), the standard layout for 9-position D-Sub connectors used in RS-232 serial ports, instrumentation cabling, and industrial control links. The shell is steel with a tin-plated finish. The dielectric insert is glass-filled nylon, and the overall connector colour is black. Two rows of 9 positions give the standard DE-9 pinout arrangement.

What This Housing Needs to Complete the Connector

Because the 167292-1 is a plug housing for male contacts, it mates with a standard 9-position D-Sub receptacle housing (the female side). The unthreaded flange means the user supplies the slide-lock or screw-lock hardware — common 4-40 UNC hardware fits the DE shell size mounting holes. For a complete mated pair, order the matching receptacle housing plus 9 male crimp contacts and 9 female crimp contacts from the AMPLIMITE HDP-20 contact family. A backshell or hood with strain relief clamps around the cable jacket to protect the crimp terminations from pull forces.

Frequently asked questions

Is 167292-1 a male or female D-Sub housing?

The 167292-1 is a plug housing for male contacts — it accepts male crimp pins and mates with a standard 9-position D-Sub receptacle (female) housing.

What contacts are compatible with 167292-1?

The 167292-1 accepts AMPLIMITE HDP-20 series male crimp contacts, ordered separately. The housing does not include contacts — select the appropriate wire-gauge contact from the HDP-20 contact family.
