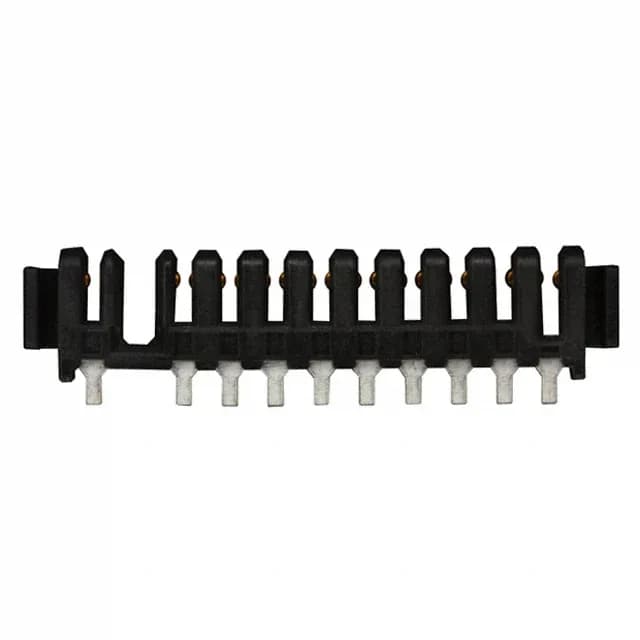

Battery Receptacle for PCB Mount – 10 Positions, 2.50 mm Pitch
It accepts female blade sockets and uses a push-pull fastening mechanism, making it suited for battery pack interconnects in portable electronics, handheld devices, and low-voltage power distribution where the connector needs to be mated and unmated without tools.
Rated 7 A per contact at 30 V, this receptacle is sized for moderate-power battery connections — think a 2-cell Li-ion pack delivering 7.4 V at a few amps, or a single-cell power bank charging at 5 V. The 30 V rating keeps this connector in the low-voltage realm — it is not intended for mains or high-voltage DC bus work.
Mating and Termination – What Connects Here
This is the receptacle (female) half of a battery connector system. It mates with a corresponding plug housing that carries male blade terminals — the push-pull latch holds the pair together without screws or locks. For higher cycle counts, a thicker gold contact variant would be preferred.
