TE Connectivity AMP Connectors 1674459-4 — USB, Type-C & HDMI Connectors

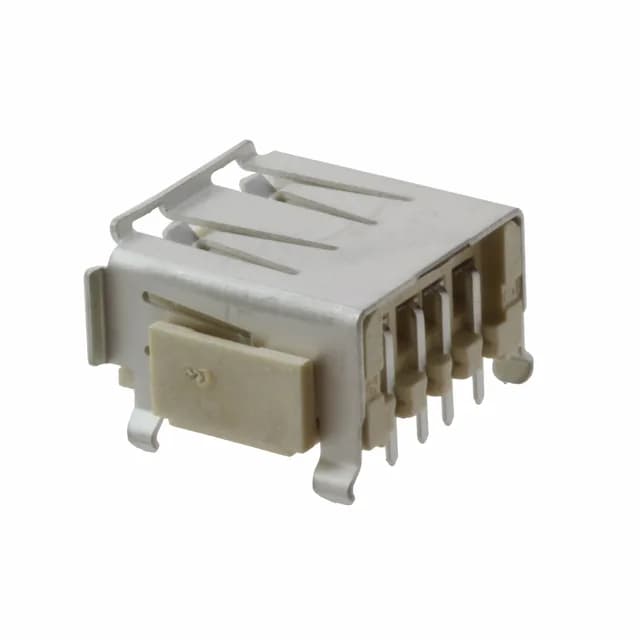

TE 1674459-4 USB-A Receptacle, USB 2.0, Right-Angle

MPN1674459-4
Active

TE Connectivity 1674459-4 USB-A (USB TYPE-A) receptacle, USB 2.0, 4 contacts, 1 port, right-angle through-hole, gold contact finish, board lock, tray.

$4.7700Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

1674459-4 specifications
ParameterValue
MountingThrough Hole, Right Angle
Connector typeUSB-A (USB TYPE-A)
Positions4
Mounting featureHorizontal
Insulation colorNatural
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

Board-Mount USB-A Receptacle for USB 2.0

A board lock feature anchors the connector to the PCB during reflow and against the mechanical load of cable insertion and removal.

Mounting and Termination for the Board Layout

The right-angle orientation means the connector body sits horizontal to the board, with the solder tails protruding through plated through-holes. The board lock feature — a pair of metal tabs that solder into their own through-holes — adds shear strength against the force of a cable being plugged or unplugged. The insulation color is natural (off-white), which is the standard for USB-A receptacles.

Frequently asked questions

What is the pinout of TE 1674459-4?

The 1674459-4 is a standard USB-A receptacle with 4 contacts following the USB 2.0 pinout: VBUS, D-, D+, and GND. The pin numbering and signal assignment match the USB specification.
