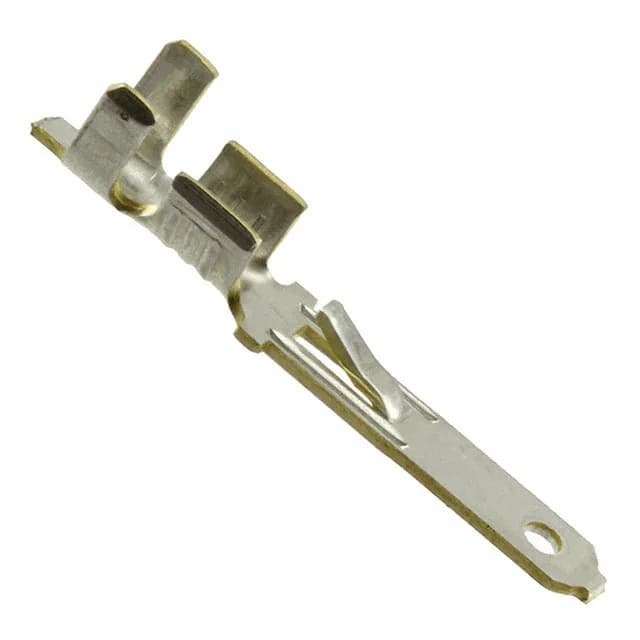

TE Connectivity Fastin-Faston quick-connect tab, order code 170014-6, male, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, 16-20 AWG, brass contact, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-20 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.472\" (12.00mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Length - overall | 0.807\" (20.50mm) |
| Insulation diameter | 0.079\" ~ 0.118\" (2.00mm ~ 3.00mm) |
The 170014-6 is a male quick-connect tab in TE's Fastin-Faston series, designed for 16-20 AWG wire with a 0.110" (2.79mm) tab width and 0.020" (0.51mm) tab thickness. The brass contact is non-insulated and terminates via crimp for free-hanging inline installation.
The 170014-6 is a male quick-connect tab.
The 170014-6 is ROHS3 compliant.
