TE Connectivity AMP Connectors 170015-1 — Quick-Disconnect Terminals

170015-1 TE Connectivity AMP Connectors Fastin-Faston QC

MPN170015-1
Active

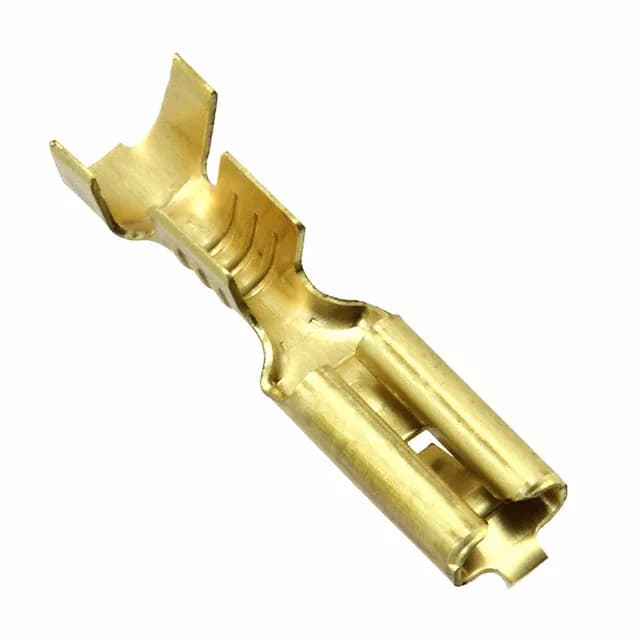

TE Connectivity AMP Connectors Fastin-Faston quick-disconnect terminal, order code 170015-1, female, 0.110" (2.79mm) tab width, 0.020" (0.51mm) tab thickness, 16-20 AWG, non-insulated, brass contact, crimp termination, free hanging (in-line).

$0.1700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFastin-Faston
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

170015-1 specifications
ParameterValue
SeriesFastin-Faston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-20 AWG
Tab width0.110\" (2.79mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.248\" (6.30mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Length - overall0.610\" (15.50mm)
Insulation diameter0.079\" ~ 0.118\" (2.00mm ~ 3.00mm)

Product details

0.110" non-insulated receptacle for 16-20 AWG

The 170015-1 is the female member of TE's Fastin-Faston quick-disconnect terminal line, accepting 0.110" (2.79mm) wide by 0.020" (0.51mm) thick male tabs. It terminates 16-20 AWG wire via a crimp barrel and is rated for free-hanging in-line installation with no insulation support.

Tab width and wire range across the series

Within the Fastin-Faston family the 170015-1's 0.110" tab width and 16-20 AWG range are shared with the male tab 170014-6 (same tab width and wire gauge, but male gender and longer overall length of 0.807") and the bulk-packaged 170042-1 (identical tab width, wire gauge, and overall length of 0.610"). The 0.250" tab width 170031-1 accepts 14-20 AWG and uses a 0.032" tab thickness — a heavier-duty option for higher-current circuits.

Frequently asked questions

Will 170015-1 drop into a panel that was specified around 170014-6 without rewiring?

No — the 170014-6 is a male tab, while the 170015-1 is a female receptacle. They share the same 0.110" tab width and 16-20 AWG wire range, but gender is opposite; a panel expecting a male tab cannot accept a female receptacle without changing the mating half.
