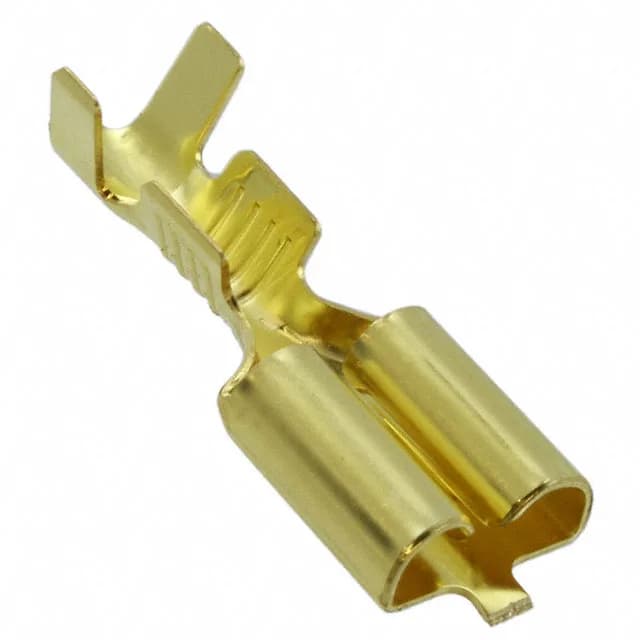

TE Connectivity AMP Fastin-Faston quick-disconnect receptacle, order code 170031-1, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 14-20 AWG, brass, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Fastin-Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-20 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Length - overall | 0.756\" (19.20mm) |
| Insulation diameter | 0.087\" ~ 0.134\" (2.21mm ~ 3.40mm) |
The 170031-1 is a non-insulated female quick-disconnect receptacle in TE's Fastin-Faston series, accepting 14–20 AWG wire via a crimp termination. Tab width is 0.250" (6.35mm) with a 0.032" (0.81mm) thickness; overall length is 0.756" (19.20mm). The brass contact carries a tin finish.
Female receptacle — mates with a 0.250" male tab of matching thickness (0.032").
Yes — both parts share the same tab width, tab thickness, overall length, wire range, and contact material. The only difference is the packaging code; the crimp terminal itself is identical.
