TE Connectivity AMP Connectors 170037-1 — Quick-Disconnect Terminals

TE 170037-1 Faston Female QC Terminal 0.187" 16-20 AWG

MPN170037-1
Active

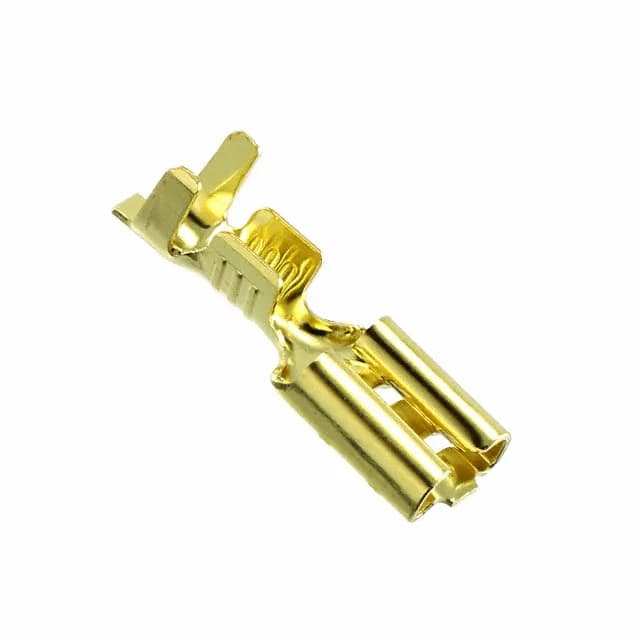

TE Connectivity AMP Connectors Faston female quick-disconnect terminal, order code 170037-1, 0.187" (4.75mm) tab width, 16-20 AWG, non-insulated, brass contact, crimp termination, free hanging (in-line), Tape & Reel.

$0.1300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesFaston
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

170037-1 specifications
ParameterValue
SeriesFaston
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge16-20 AWG
Tab width0.187\" (4.75mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationNon-Insulated
Tab length0.252\" (6.40mm)
TerminationCrimp
Tab thickness0.020\" (0.51mm)
Length - overall0.598\" (15.20mm)
Insulation diameter0.090\" ~ 0.130\" (2.29mm ~ 3.30mm)

Product details

Crimp termination, free-hanging fit

The 170037-1 is a Faston-series female quick-disconnect terminal from TE Connectivity AMP Connectors, accepting 16-20 AWG wire with a 0.187" (4.75mm) tab width.

Tab width and wire gauge selection

Within the Faston family the 170037-1's 0.187" tab width and 16-20 AWG range differ from the wider 0.250" (6.35mm) tab of the Utilux-series 1-1627194-4 (15-18 AWG) and the 0.248" (6.30mm) tab of the 1-1659250-0 (17-20 AWG). Tab thickness on the 170037-1 is 0.020" (0.51mm); the Utilux peers use 0.032" (0.81mm) and 0.031" (0.79mm) respectively.

Frequently asked questions

Where can I buy 170037-1 and how do I get a price?

The 170037-1 is orderable under the listed part number.
