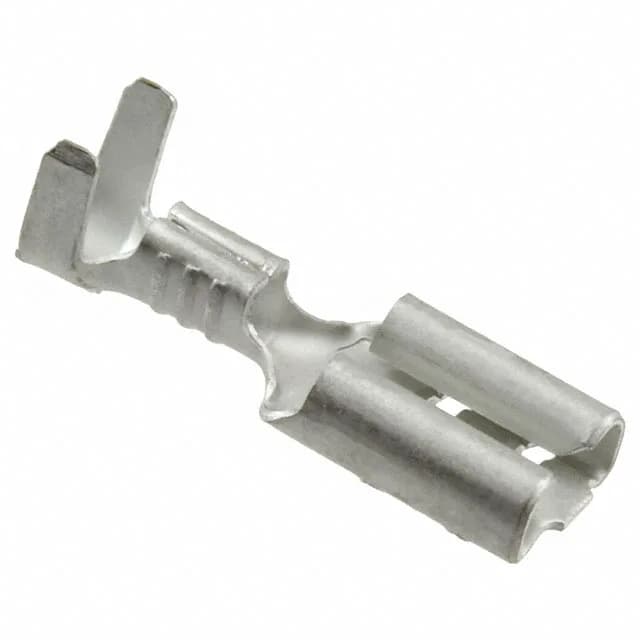

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 170038-2, female, 0.187" (4.75mm) tab width, 16-20 AWG, tin-plated brass, non-insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-20 AWG |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.252\" (6.40mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.634\" (16.10mm) |
| Insulation diameter | 0.090\" ~ 0.130\" (2.29mm ~ 3.30mm) |
The 170038-2 is the female 0.187" (4.75mm) tab-width member of TE's Faston quick-disconnect terminal line, accepting 16-20 AWG wire. The non-insulated brass contact carries a tin finish and terminates via crimp for free-hanging inline applications.
Sourced per RFQ against BOM quantity; no official pin-compatible alternative within the Faston series is documented.
Female receptacle — mates with a 0.187" (4.75mm) male tab.
ROHS3 compliant per the listed lifecycle record. No UL or IEC certification is stated on the record.
