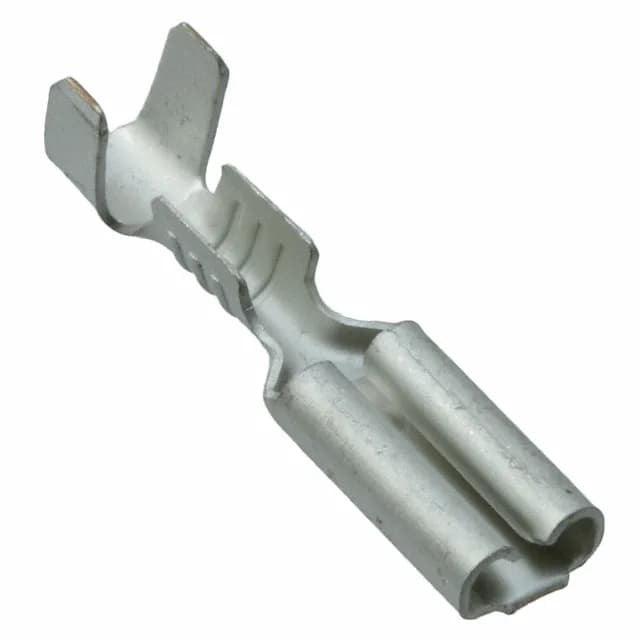

TE Connectivity AMP Connectors quick-disconnect terminal, order code 170048-2, female, 0.110" (2.79mm) tab width, 20-24 AWG, tin-plated brass, non-insulated, crimp termination, free hanging, bulk.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 20-24 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.252\" (6.40mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.681\" (17.30mm) |
| Insulation diameter | 0.079\" ~ 0.118\" (2.00mm ~ 3.00mm) |
The 170048-2 is a female quick-disconnect terminal from TE Connectivity AMP Connectors, designed for 20-24 AWG wire with a 0.110" (2.79mm) tab width. It uses a tin-plated brass contact, crimp termination, and mounts free-hanging (in-line) without insulation.
The 0.110" tab width and 0.020" tab thickness match standard 0.110 series quick-disconnect receptacles; the 20-24 AWG range covers common signal and control wiring.
The 170048-2 is ROHS3 Compliant per TE Connectivity AMP Connectors.
