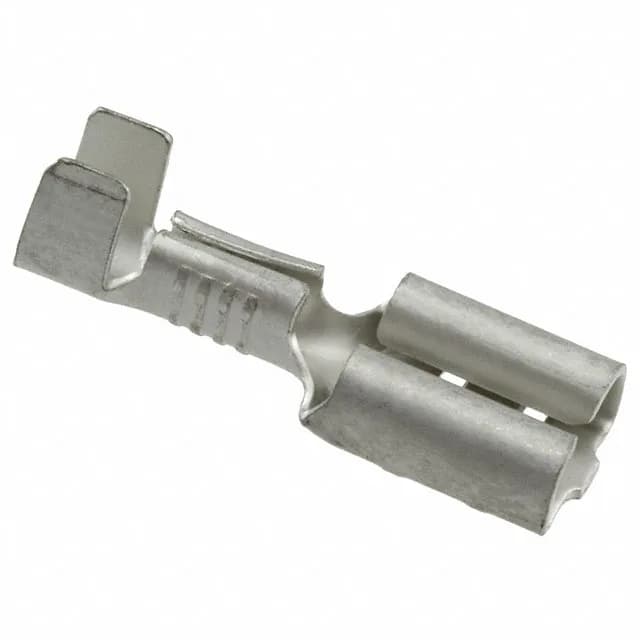

TE Connectivity AMP Connectors Faston quick-disconnect terminal, order code 170084-2, female, 0.250" (6.35mm) tab width, non-insulated, 14-18 AWG, crimp termination, free hanging (in-line), phosphor bronze contact.
| Parameter | Value |
|---|---|
| Series | Faston |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 14-18 AWG |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Bulk |
| Insulation | Non-Insulated |
| Tab length | 0.307\" (7.80mm) |
| Termination | Crimp |
| Length - overall | 0.764\" (19.40mm) |
| Insulation diameter | 0.120\" ~ 0.170\" (3.05mm ~ 4.32mm) |
The 170084-2 is a non-insulated female quick-disconnect terminal from the TE Faston series, accepting 0.250" (6.35mm) male tabs. Crimp termination for 14-18 AWG wire; the phosphor bronze contact carries the current path in a free-hanging, in-line mount.
Tab width is 0.250" (6.35mm); overall length is 0.764" (19.40mm).
The crimp terminal accepts 14-18 AWG wire with an insulation diameter of 0.120" ~ 0.170" (3.05mm ~ 4.32mm).
